Removal [04/2018 - ]: Procedure

  1. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH

    Refer to PROCEDURE - Step 3 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 3 [08/2020 - ]

  2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL RH

    Refer to PROCEDURE - Step 4 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 4 [08/2020 - ]

  3. REMOVE FRONT CONSOLE UPPER PANEL GARNISH

    Refer to PROCEDURE - Step 5 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 5 [08/2020 - ]

  4. REMOVE CONSOLE BOX POCKET SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 6 [08/2020 - ]

  5. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7 [04/2018 - 08/2020] , or refer to PROCEDURE - Step 7 [08/2020 - ]

  6. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 13 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 13 [08/2021 - ]

  7. REMOVE CENTER NO. 2 INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 14 [04/2018 - 08/2021] , or refer to PROCEDURE - Step 14 [08/2021 - ]

  8. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 9

  9. REMOVE NO. 1 CLEARANCE WARNING BUZZER

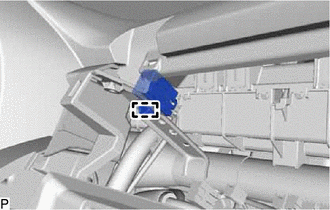

    1. Disengage the clamp.
      GTY944175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

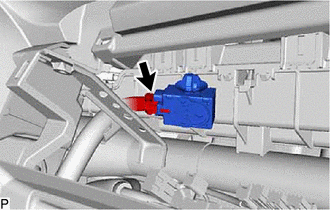

    2. Disconnect the connector to remove the No. 1 clearance warning buzzer.
      GTY919746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
