Removal [04/2018 - 08/2020]: Procedure

  1. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH

    Refer to PROCEDURE - Step 3

  2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL RH

    Refer to PROCEDURE - Step 4

  3. REMOVE FRONT CONSOLE UPPER PANEL GARNISH

    Refer to PROCEDURE - Step 5

  4. REMOVE CONSOLE BOX POCKET SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  5. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  6. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 13

  7. REMOVE CENTER NO. 2 INSTRUMENT CLUSTER FINISH PANEL

    Refer to PROCEDURE - Step 14

  8. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

    Refer to PROCEDURE - Step 9

  9. REMOVE NO. 2 HEATER TO REGISTER DUCT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16

  10. REMOVE DCM (TELEMATICS TRANSCEIVER) WITH BRACKET
    1. w/o Navigation System:
      1. Disconnect the connector.
        GTY944240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

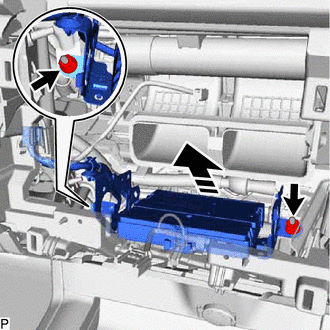

      2. Remove the 2 nuts and pull the DCM (telematics transceiver) with bracket as shown in the illustration.
        GTY846177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
      3. Disconnect each connector and remove the DCM (telematics transceiver) with bracket.
    2. w/ Navigation System:
      1. Disconnect the 2 connectors.
        GTY945381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

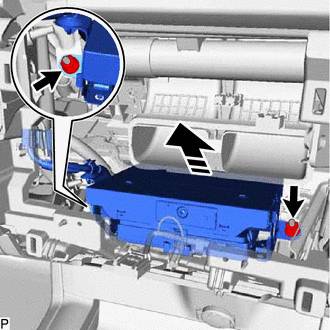

      2. Remove the 2 nuts and pull the DCM (telematics transceiver) with bracket as shown in the illustration.
        GTY931363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
      3. Disconnect each connector and remove the DCM (telematics transceiver) with bracket.
  11. REMOVE TELEPHONE AND GPS ANTENNA CORD

    See step  11

  12. REMOVE NO. 2 TELEPHONE BRACKET
    1. w/o Navigation System:

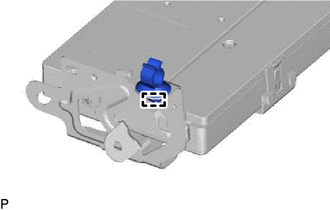

      1. Disengage the wiring harness clamp.
        GTY920196Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

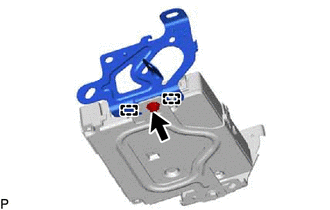

      2. Remove the screw and disengage the 2 guides to remove the No. 2 telephone bracket.
        GTY920191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Navigation System:

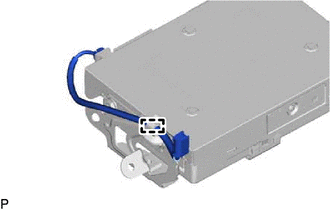

      1. Disengage the clamp.
        GTY944273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the wiring harness clamp.
        GTY920194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

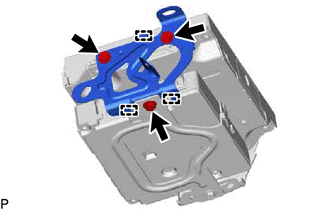

      3. Remove the 3 screws and disengage the 3 guides to remove the No. 2 telephone bracket.
        GTY920192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO. 1 TELEPHONE BRACKET
    1. w/o Navigation System:

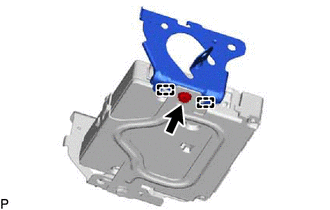

      1. Remove the screw and disengage the 2 guides to remove the No. 1 telephone bracket.
        GTY920189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/ Navigation System:

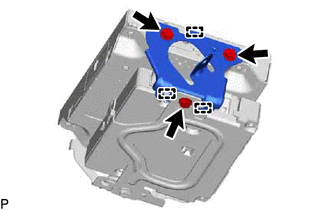

      1. Remove the 3 screws and disengage the 3 guides to remove the No. 1 telephone bracket.
        GTY920190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NAVIGATION ECU WITH ANTENNA CORD (w/ Navigation System)
  15. REMOVE DCM (TELEMATICS TRANSCEIVER)
