Removal [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE INSTRUMENT PANEL FINISH PANEL END LH
Refer to PROCEDURE - Step 35
REMOVE NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 4
REMOVE NO. 2 ENGINE UNDER COVER (for AWD)
Refer to PROCEDURE - Step 5
REMOVE FRONT EXHAUST PIPE ASSEMBLY (for 2WD)
Refer to PROCEDURE - Step 7
REMOVE FRONT EXHAUST PIPE ASSEMBLY (for AWD)
Refer to PROCEDURE - Step 8

REMOVE NO. 2 OXYGEN SENSOR (for Bank 2 Sensor 2)

Using SST, remove the No. 2 oxygen sensor (for bank 2 sensor 2) from the front exhaust pipe assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09224-00010

NOTE:

If a component has been dropped or subjected to a strong impact, replace No. 2 oxygen sensor (for bank 2 sensor 2).

REMOVE OXYGEN SENSOR (for Bank 1 Sensor 2)

for 2WD:

Using SST, remove the oxygen sensor (for bank 1 sensor 2) from the front exhaust pipe assembly.

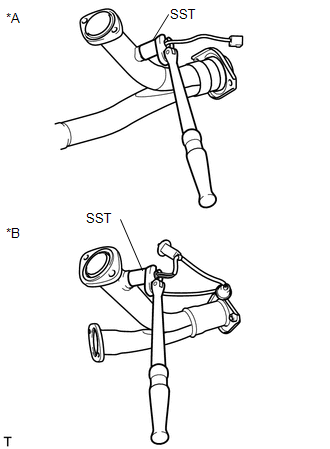

TEXT IN ILLUSTRATION

*A	for 2WD
*B	for AWD

SST: 09224-00010

NOTE:

If a component has been dropped or subjected to a strong impact, replace oxygen sensor (for bank 1 sensor 2).

for AWD:
1. Using SST, remove the oxygen sensor (for bank 1 sensor 2) from the No. 3 exhaust pipe sub-assembly.
  - SST: 09224-00010
  NOTE:
  If a component has been dropped or subjected to a strong impact, replace oxygen sensor (for bank 1 sensor 2).
