Removal [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE ASSEMBLY

    (Refer to REMOVAL [12/2015 - 08/2016] )

  2. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 3

  3. REMOVE CRANKSHAFT POSITION SENSOR

    Refer to PROCEDURE - Step 2

  4. REMOVE NO. 1 OIL PIPE

    Refer to PROCEDURE - Step 8

  5. REMOVE OIL PIPE

    Refer to PROCEDURE - Step 9

  6. REMOVE CRANKSHAFT PULLEY

    Refer to PROCEDURE - Step 4

  7. SEPARATE OIL COOLER PIPE (w/ oil cooler)

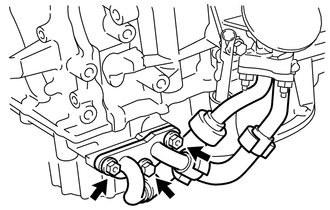

    1. Remove the bolt and 2 nuts, and disconnect the oil cooler pipe from the oil pan sub-assembly.
      GTY306083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket from the oil pan sub-assembly.
  8. REMOVE WATER INLET HOUSING

    Refer to PROCEDURE - Step 18

  9. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY (for Bank 1)

    Refer to PROCEDURE - Step 20

  10. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY (for Bank 2)

    Refer to PROCEDURE - Step 21

  11. REMOVE NO. 2 OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 22

  12. REMOVE OIL STRAINER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 23

  13. REMOVE OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

  14. REMOVE TIMING CHAIN COVER SUB-ASSEMBLY

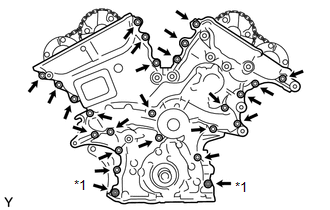

    1. Remove the 23 bolts and 2 nuts shown in the illustration.
      GTY304202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Nut
    2. Remove the timing chain cover by prying between the timing chain cover and cylinder head or cylinder block with a screwdriver.
      GTY318931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
      NOTE:

      Be careful not to damage the contact surfaces of the cylinder head, cylinder block and chain cover.

      HINT:

      Tape the screwdriver tip before use.

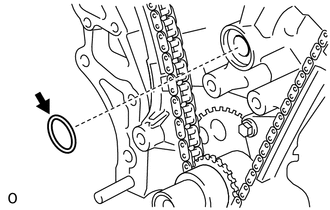

    3. Remove the gasket.
      GTY602279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL

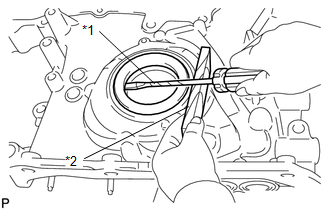

    1. Using a screwdriver, pry out the oil seal.
      GTY734342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
      *2 Wooden Block

      HINT:

      Tape the screwdriver tip before use.
