Removal [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT WHEEL RH
  2. REMOVE FRONT FENDER APRON SEAL RH

    See step  10

  3. REMOVE FAN AND GENERATOR V BELT

    See step  3

  4. REMOVE CRANKSHAFT PULLEY

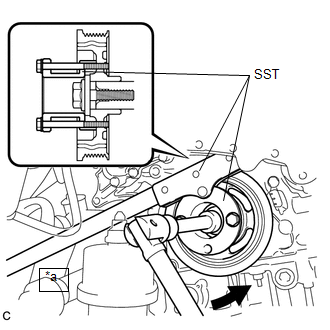

    1. Using SST, loosen the crankshaft pulley bolt.
      GTY707547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09213-70011
        1. 09213-70020
      • SST: 09330-00021
      TEXT IN ILLUSTRATION

      *a Hold
      Turn

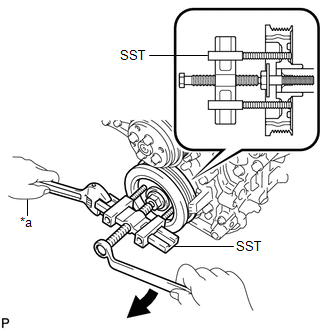

    2. Using SST, remove the crankshaft pulley bolt and crankshaft pulley.
      GTY718349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-50013
        1. 09951-05010
        2. 09952-05010
        3. 09953-05020
        4. 09954-05021
      TEXT IN ILLUSTRATION

      *a Hold
      Turn

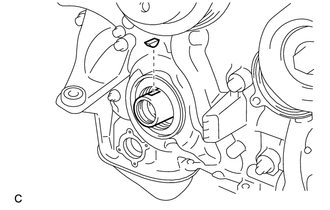

    3. Remove the pulley set key from the crankshaft.
      GTY301410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE TIMING CHAIN CASE OIL SEAL

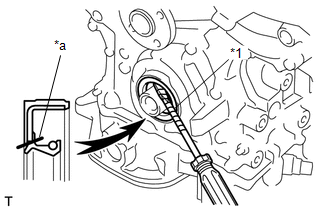

    1. Using a knife, cut off the timing chain case oil seal lip.
      GTY717834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
      *a Cut Position
    2. Using a screwdriver, pry out the timing chain case oil seal.
      NOTE:

      After the removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.

      HINT:

      Tape the screwdriver tip before use.
