Removal [12/2015 - 08/2016]: Procedure
WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE INTAKE AIR SURGE TANK ASSEMBLY
(Refer to REMOVAL [12/2015 - 08/2016]
)
- REMOVE NO. 1 SURGE TANK STAY
Refer to PROCEDURE - Step 4
- REMOVE IGNITION COIL ASSEMBLY

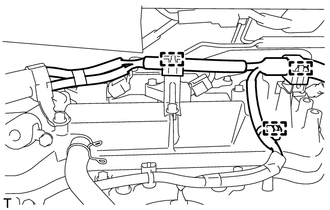

- Disconnect the 3 wire harness clamps.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

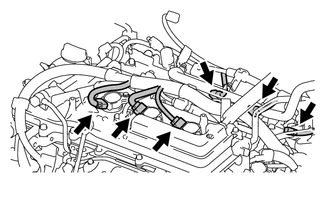

- Disconnect the 6 ignition coil connectors.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

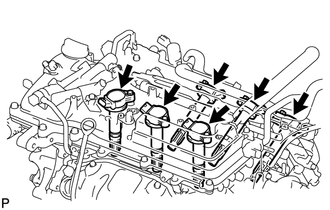

- Remove the 6 bolts and 6 ignition coils.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE SPARK PLUG

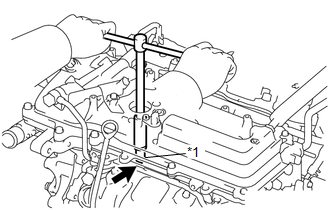

- Using a 16 mm spark plug wrench, remove the 6 spark plugs.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
TEXT IN ILLUSTRATION
| *1 |
16 mm Spark Plug Wrench |
