Removal [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 4

  2. DRAIN ENGINE COOLANT

    See step  3

  3. REMOVE FRONT BUMPER COVER

    (Refer to REMOVAL [12/2015 - 11/2017] )

  4. REMOVE V-RIBBED BELT

    (Refer to REMOVAL [12/2015 - 08/2016] )

  5. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 24

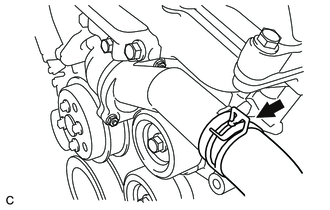

  6. DISCONNECT NO. 2 RADIATOR HOSE
    1. Disconnect the No. 2 radiator hose from the water inlet.
      GTY304939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  8. REMOVE WATER INLET
    1. Remove the 2 nuts and water inlet.
      GTY307938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE THERMOSTAT
    1. Remove the thermostat from the water inlet housing.
    2. Remove the gasket from the thermostat.
