Installation [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO. 3 CAMSHAFT
    1. Apply a light coat of engine oil to the No. 3 camshaft journals and camshaft housing sub-assembly LH.
    2. Install the No. 3 camshaft to the camshaft housing sub-assembly LH.
  2. INSTALL NO. 4 CAMSHAFT
    1. Apply a light coat of engine oil to the No. 4 camshaft journals and camshaft housing sub-assembly LH.
    2. Install the No. 4 camshaft to the camshaft housing sub-assembly LH.
  3. INSTALL CAMSHAFT BEARING CAP (for Bank 2)
    1. Apply engine oil to the camshaft bearing caps.
    2. Make sure of the marks and numbers on the camshaft bearing caps and place them in each proper position and direction.
      GTY146842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

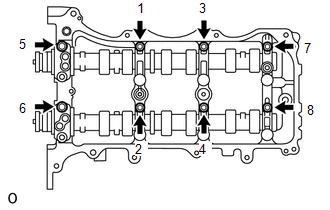

    3. Temporarily tighten the 8 bolts in the order shown in the illustration.
      Fig 1: Camshaft Bearing Cap Tightening Sequence (For Bank 2)
      GTY704553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  4. INSTALL CAMSHAFT HOUSING SUB-ASSEMBLY LH
    1. Make sure that the valve rocker arm is installed as shown in the illustration.
      GTY694311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Valve Rocker Arm
      *2 Lash Adjuster
      *3 Valve Stem
      *4 Valve Stem Cap

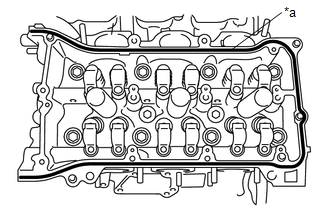

    2. Apply seal packing in a continuous line as shown in the illustration.
      GTY300721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Seal packing diameter
      (3.5 to 4.5 mm)

      Seal packing

      Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

      Seal diameter

      3.5 to 4.5 mm (0.138 to 0.177 in.)

      NOTE:
      • Remove any oil from the contact surface.
      • Install the camshaft housing sub-assembly LH within 3 minutes and tighten the bolts within 15 minutes after applying seal packing.
      • Do not start the engine for at least 2 hours after installing.

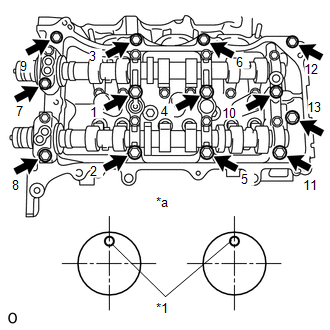

    3. Install the camshaft housing sub-assembly LH and tighten the 13 bolts in the order shown in the illustration.
      Fig 2: Camshaft Housing Sub-Assembly Tightening Sequence (1 Of 2)
      GTY720454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Knock Pin
      *a Front View

      Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)

      NOTE:
      • When installing the camshaft housing sub-assembly LH, it is necessary to correctly position the camshafts as shown in the illustration. Failure to correctly position these parts may result in damage due to contact between the pistons and valves. If a camshaft is rotated with a piston at TDC, valve contact will occur.
      • If any of the bolts are loosened during installation, remove the camshaft housing sub-assembly LH, clean the installation surfaces, and reapply seal packing.
      • If the camshaft housing sub-assembly LH is removed because any of the bolts are loosened during installation, make sure that the previously applied seal packing does not enter any oil passages.

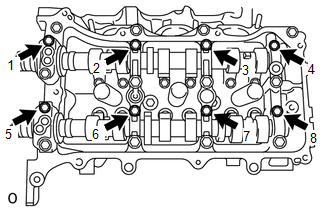

    4. Tighten the 8 bolts in the order shown in the illustration.
      Fig 3: Camshaft Housing Sub-Assembly Tightening Sequence (2 Of 2)
      GTY696473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

  5. INSTALL CAMSHAFT
    1. Apply a light coat of engine oil to the camshaft journals and camshaft housing sub-assembly RH.
    2. Install the camshaft to the camshaft housing sub-assembly RH.
  6. INSTALL NO. 2 CAMSHAFT
    1. Apply a light coat of engine oil to the No. 2 camshaft journals and camshaft housing sub-assembly RH.
    2. Install the No. 2 camshaft to the camshaft housing sub-assembly RH.
  7. INSTALL CAMSHAFT BEARING CAP (for Bank 1)
    1. Apply engine oil to the camshaft bearing caps.
    2. Make sure of the marks and numbers on the camshaft bearing caps and place them in each proper position and direction.
      GTY142355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Temporarily tighten the 8 bearing cap bolts in the order shown in the illustration.

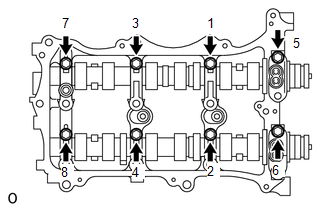

      Fig 4: Camshaft Bearing Cap Tightening Sequence (For Bank 1)
      GTY703873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  8. INSTALL CAMSHAFT HOUSING SUB-ASSEMBLY RH
    1. Make sure that the No. 1 valve rocker arm sub-assembly is installed as shown in the illustration.
      GTY694311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Valve Rocker Arm
      *2 Lash Adjuster
      *3 Valve Stem
      *4 Valve Stem Cap

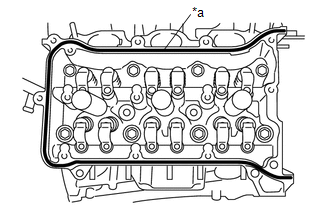

    2. Apply seal packing in a continuous line as shown in the illustration.
      GTY295835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Seal packing diameter
      (3.5 to 4.5 mm)

      Seal packing

      Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

      Seal diameter

      3.5 to 4.5 mm (0.138 to 0.177 in.)

      NOTE:
      • Remove any oil from the contact surface.
      • Install the camshaft housing sub-assembly RH within 3 minutes and tighten the bolts within 15 minutes after applying seal packing.
      • Do not start the engine for at least 2 hours after installing.

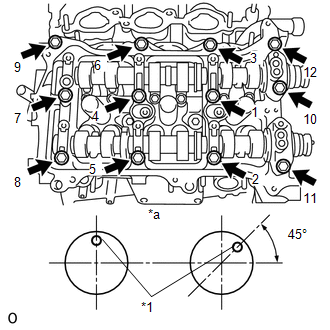

    3. Install the camshaft housing sub-assembly RH and tighten the 12 bolts in the order shown in the illustration.
      Fig 5: Camshaft Housing Sub-Assembly Tightening Sequence (1 Of 2)
      GTY737381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Knock Pin
      *a Front View

      Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)

      NOTE:
      • When installing the camshaft housing RH, it is necessary to correctly position the camshafts as shown in the illustration.

        Failure to correctly position these parts may result in damage due to contact between the pistons and valves. If a camshaft is rotated with a piston at TDC, valve contact will occur.

      • If any of the bolts are loosened during installation, remove the camshaft housing sub-assembly RH, clean the installation surfaces, and reapply seal packing.
      • If the camshaft housing sub-assembly RH is removed because any of the bolts are loosened during installation, make sure that the previously applied seal packing does not enter any oil passages.

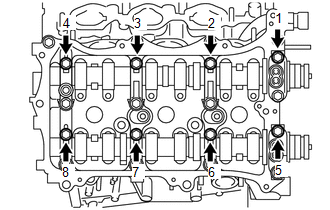

    4. Tighten the 8 bolts in the order shown in the illustration.
      Fig 6: Camshaft Housing Sub-Assembly Tightening Sequence (2 Of 2)
      GTY698361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

  9. INSTALL NO. 3 CHAIN TENSIONER ASSEMBLY
    1. Install the No. 3 chain tensioner assembly with the bolt.
      GTY728234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

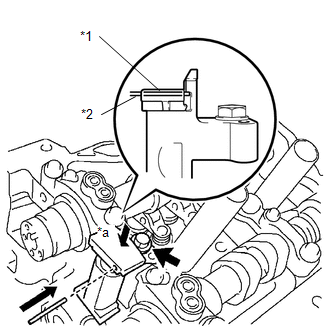

    2. While pushing in the tensioner, insert a pin of 1.0 mm (0.0394 in.) diameter into the hole to hold it.
      TEXT IN ILLUSTRATION

      *1 Plunger
      *2 Pin
      *a Push
  10. INSTALL CAMSHAFT TIMING GEARS AND NO. 2 CHAIN (for Bank 2)

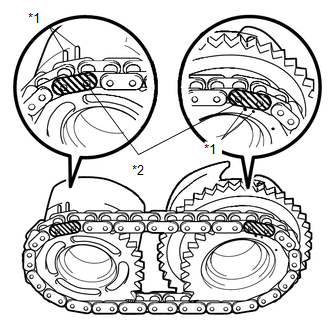

    1. Align the mark plates (yellow) with the timing marks of the camshaft timing gear assemblies as shown in the illustration.
      GTY732746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Timing Mark
      *2 Mark Plate (yellow)
    2. Apply a light coat of engine oil to the bolt threads and bolt-seating surface.
    3. Align the knock pin of the camshaft with the pin hole of the camshaft timing gear assembly. Install the camshaft timing gear assembly and camshaft timing exhaust gear LH with the No. 2 chain sub-assembly installed.

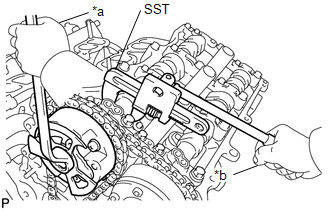

    4. Using SST to hold the hexagonal portion of each camshaft, tighten the flange bolts of the camshaft timing gear assembly and the camshaft timing exhaust gear assembly LH.
      GTY693851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Turn
      *b Hold
      • SST: 09922-10010

      Torque: 100 N*m (1020 kgf*cm, 74 ft.*lbf)

    5. Remove the pin from the No. 3 chain tensioner assembly.
  11. INSTALL NO. 2 CHAIN TENSIONER ASSEMBLY
    1. Install the No. 2 chain tensioner assembly with the bolt.

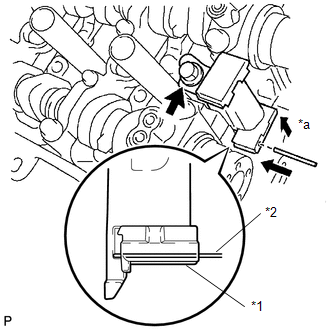

      GTY723704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    2. While pushing in the No. 2 chain tensioner assembly, insert a pin of 1.0 mm (0.0394 in.) diameter into the hole to hold it.
      TEXT IN ILLUSTRATION

      *1 Plunger
      *2 Pin
      *a Push
  12. INSTALL CAMSHAFT TIMING GEARS AND NO. 2 CHAIN (for Bank 1)

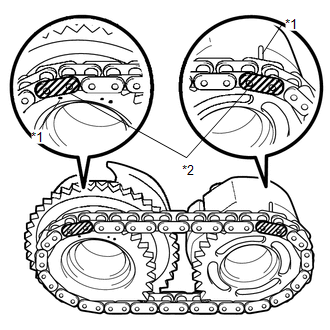

    1. Align the mark plates (yellow) with the timing marks of the camshaft timing gear assemblies as shown in the illustration.
      GTY721063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Timing Mark
      *2 Mark Plate (yellow)
    2. Apply a light coat of engine oil to the bolt threads and bolt-seating surface.
    3. Align the knock pin of the camshaft with the pin hole of the camshaft timing gear assembly. Install the camshaft timing gear assembly and camshaft timing exhaust gear assembly with the No. 2 chain sub-assembly installed.
    4. Using SST to hold the hexagonal portion of each camshaft, tighten the flange bolts of the camshaft timing gear assembly and the camshaft timing exhaust gear assembly RH.
      GTY586104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Turn
      *b Hold
      • SST: 09922-10010

      Torque: 100 N*m (1020 kgf*cm, 74 ft.*lbf)

    5. Remove the pin from the No. 2 chain tensioner assembly.
  13. INSTALL IDLE SPROCKET ASSEMBLY

    See step  26

  14. INSTALL CHAIN SUB-ASSEMBLY

    See step  27

  15. INSTALL CHAIN TENSIONER SLIPPER

    See step  28

  16. INSTALL NO. 1 CHAIN TENSIONER ASSEMBLY

    See step  29

  17. INSPECT VALVE TIMING

    See step  30

  18. INSTALL TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL

    Refer to PROCEDURE - Step 1

  19. INSTALL TIMING CHAIN COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  20. INSTALL WATER INLET HOUSING

    See step  34

  21. INSTALL FRONT NO. 1 ENGINE MOUNTING BRACKET LH

    See step  35

  22. INSTALL OIL PAN SUB-ASSEMBLY

    See step  37

  23. INSTALL OIL STRAINER SUB-ASSEMBLY

    See step  38

  24. INSTALL NO. 2 OIL PAN SUB-ASSEMBLY

    See step  39

  25. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY (for Bank 1)

    See step  41

  26. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY LH (for Bank 2)

    See step  42

  27. INSTALL CRANKSHAFT PULLEY

    See step  2

  28. INSTALL NO. 1 OIL PIPE

    See step  51

  29. INSTALL OIL PIPE

    See step  52

  30. INSTALL CRANKSHAFT POSITION SENSOR

    Refer to PROCEDURE - Step 1

  31. INSTALL NO. 1 VACUUM SWITCHING VALVE ASSEMBLY

    See step  5

  32. INSTALL WATER PUMP PULLEY

    Refer to PROCEDURE - Step 2

  33. INSTALL NO. 2 IDLER PULLEY SUB-ASSEMBLY

    See step  7

  34. INSTALL NO. 2 TIMING GEAR COVER

    See step  8

  35. INSTALL V-RIBBED BELT TENSIONER ASSEMBLY

    See step  9

  36. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY

    (Refer to INSTALLATION [12/2015 - 08/2016] )

  37. INSTALL INTAKE MANIFOLD

    (Refer to INSTALLATION [12/2015 - 08/2016] )

  38. INSTALL IGNITION COIL ASSEMBLY

    (Refer to INSTALLATION [12/2015 - 08/2016] )

  39. INSTALL ENGINE HANGER

    See step  22

  40. REMOVE ENGINE FROM ENGINE STAND
  41. INSTALL DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

    See step  2

  42. INSTALL AUTOMATIC TRANSAXLE ASSEMBLY (for 2WD)

    (Refer to INSTALLATION [12/2015 - 08/2016] )

  43. INSTALL AUTOMATIC TRANSAXLE ASSEMBLY (for AWD)

    (Refer to INSTALLATION [12/2015 - 08/2016] )
