Removal [12/2015 - 08/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCHARGE FUEL SYSTEM PRESSURE

    (Refer to PRECAUTION [12/2015 - 08/2016] )

  2. REMOVE AIR CLEANER AND HOSE

    (Refer to REMOVAL [12/2015 - 08/2016] )

  3. REMOVE WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 8

  4. REMOVE NO. 2 WATER BY-PASS HOSE

    Refer to PROCEDURE - Step 9

  5. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

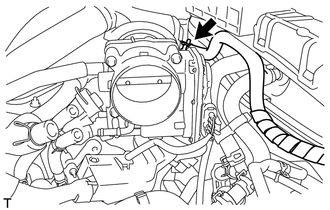

    1. Disconnect the union to check valve hose.
      GTY298013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

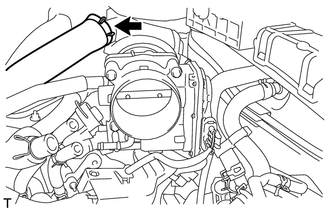

    2. Loosen the clip and disconnect the ventilation hose assembly.
      GTY306043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

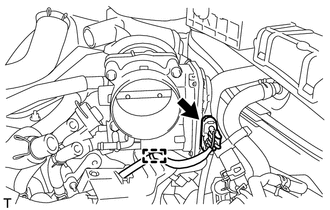

    3. Disconnect the throttle body connector and wire harness clamp.
      GTY297919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

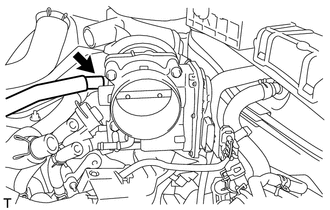

    4. Disconnect the No. 1 fuel vapor feed hose.
      GTY297917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disconnect the vacuum hose and the hose clamp.
      GTY686632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Disconnect the intake air control valve connector.
      GTY170165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

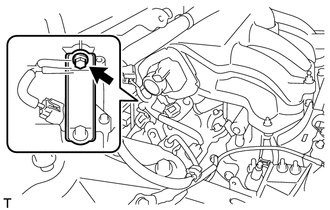

    7. Remove the bolt and separate the No. 1 surge tank stay from the intake air surge tank assembly.
      GTY297915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

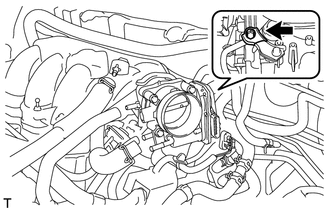

    8. Remove the bolt and separate the throttle body bracket from the intake air surge tank assembly.
      GTY295915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

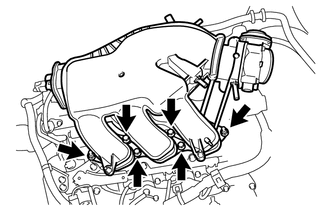

    9. Remove the 2 nuts.
      GTY305575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. Using a 5 mm socket hexagon wrench, remove the 4 bolts.
    11. Remove the intake air surge tank assembly and 3 air surge tank to intake manifold gaskets.
  6. REMOVE FUEL HOSE PROTECTOR

    Refer to PROCEDURE - Step 5

  7. REMOVE NO. 2 ENGINE MOUNTING STAY RH

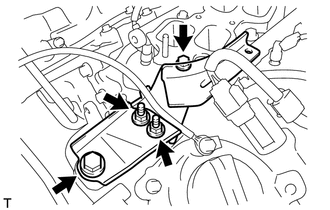

    1. Remove the 2 nuts, 2 bolts and the No. 2 engine mounting stay RH.
      GTY306042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. DISCONNECT FUEL TUBE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  9. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  10. REMOVE INTAKE MANIFOLD

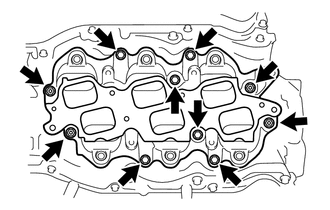

    1. Remove the 6 bolts, 4 nuts and the intake manifold.
      GTY295917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 intake manifold to head gaskets.
