Removal [08/2016 - ]: Procedure

  1. REMOVE KNOCK SENSOR

    Refer to REMOVAL [08/2016 - ]

  2. REMOVE SENSOR WIRE
    1. Disengage the 2 clamps and remove the bolt and sensor wire from the water inlet pipe.
      GTY665987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. REMOVE VACUUM PUMP ASSEMBLY

    Refer to PROCEDURE - Step 18

  5. REMOVE NO. 3 WATER BY-PASS HOSE
    1. Slide the clip and remove the No. 3 water by-pass hose from the water inlet pipe.
      GTY671714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 2 REMOVE WATER BY-PASS HOSE
    1. Slide the clip and remove the No. 2 water by-pass hose from the water outlet.
      GTY681244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE VENTILATION HOSE
    1. GTY665986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Slide the clip and remove the ventilation hose from the PCV valve (ventilation valve sub-assembly).

  8. REMOVE NO. 2 REMOVE VENTILATION HOSE
    1. Slide the clip and remove the No. 2 ventilation hose from the cylinder head cover sub-assembly.
      GTY671738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 1 COMPRESSOR MOUNTING BRACKET
    1. GTY665983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 bolts and No. 1 compressor mounting bracket from the cylinder block sub-assembly.

  10. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  11. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY

    Refer to PROCEDURE - Step 4

  12. REMOVE WATER PUMP PULLEY

    Refer to PROCEDURE - Step 5

  13. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE
    1. Remove the engine oil level dipstick from the engine oil level dipstick guide.
    2. Remove the bolt and engine oil level dipstick guide from the camshaft housing sub-assembly LH and oil pan sub-assembly.
      GTY652148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the engine oil level dipstick guide O-ring from the engine oil level dipstick guide.
      GTY652149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 5 CYLINDER BLOCK INSULATOR (w/ Oil Cooler)
    1. Remove the No. 5 cylinder block insulator from the engine assembly.
      GTY685565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

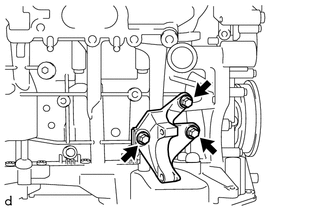

  15. REMOVE DRIVE SHAFT BEARING BRACKET (for 2WD)
    1. Remove the 3 bolts and drive shaft bearing bracket from the cylinder block sub-assembly.
      GTY713296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

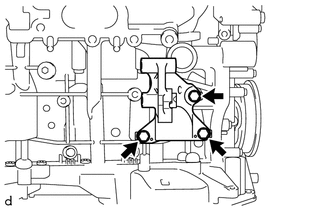

  16. REMOVE REAR ENGINE MOUNTING BLACKET (for AWD)
    1. Remove the 3 bolts and rear engine mounting bracket from the cylinder block sub-assembly.
      GTY713293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE WIRE HARNESS CLAMP BRACKET
    1. Remove the bolt and wire harness clamp bracket from the camshaft housing sub-assembly.
      GTY736794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and wire harness clamp bracket from the cylinder head cover LH
      GTY713291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt and wire harness clamp bracket from the camshaft housing sub-assembly.
      GTY664026Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
