Removal [08/2016 - ]: Procedure

Refer to REMOVAL [08/2016 - ]

Refer to REMOVAL [12/2015 - ]

1. Remove the bolt and No. 2 idler pulley sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 bolts and V-ribbed belt tensioner assembly.

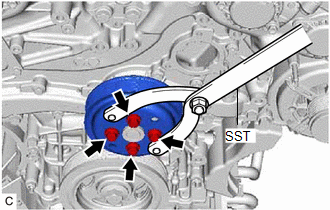

1. Using SST, hold the water pump pulley.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09960-10010
     1. 09962-01000
     2. 09963-00700
2. Remove the 4 bolts and water pump pulley.

   HINT:

   There is not enough clearance to completely remove the water pump pulley from the water pump shaft. Remove the water pump pulley together with the engine water pump assembly.

1. Remove the 15 bolts, engine water pump assembly, water pump pulley and water pump gasket.
