Installation [08/2016 - ]: Procedure

  1. INSTALL DRIVE SHAFT BEARING BRACKET (for 2WD)

    Refer to PROCEDURE - Step 2

  2. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH
    1. Coat the snap ring of the front drive inboard joint assembly with MP grease.
    2. Coat the splines of the front drive inboard joint assembly with Toyota genuine ATF WS.

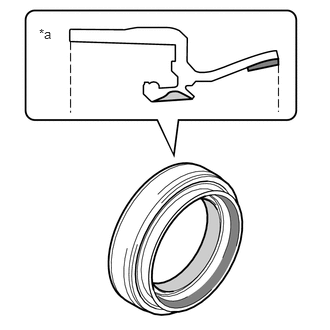

    3. Coat the lip of the front drive shaft oil seal LH with MP grease and Toyota genuine oil seal side lip grease as shown in the illustration.
      GTY779876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cross Section of Front Drive Shaft Oil Seal LH
      MP Grease
      Toyota Genuine Oil Seal Side Lip Grease

      HINT:

      Apply a light coat of MP grease and Toyota genuine oil seal side lip grease to the entire circumference of the front drive shaft oil seal LH.

    4. Align the inboard joint splines, and using a brass bar and a hammer, install the front drive shaft assembly LH.
      GTY203836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Face the end gap of the front drive shaft hole snap ring downward.
      • Do not damage the front drive shaft oil seal LH.
      • Do not damage the front axle inboard joint boot.
      • Make sure to center the front drive shaft assembly LH during installation to prevent damage to the front drive shaft hole snap ring.

      HINT:

      Confirm whether the drive shaft is securely driven in by checking the reaction force and sound.

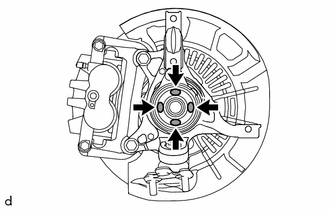

    5. Apply Toyota body grease W to the entire contact surface between the front drive shaft assembly and front axle hub sub-assembly surface or only apply 0.1 to 0.3 g (0.00353 to 0.0105 oz.) of Toyota body grease W to the 4 areas on the axle hub bearing shown in the illustration.
      GTY772591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Toyota Body Grease W
    6. Align the matchmarks and install the front drive shaft assembly LH to the front axle hub sub-assembly.

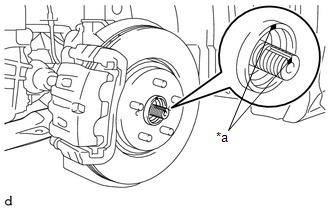

      GTY701063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
      NOTE:
      • Do not damage the front disc brake dust cover.
      • Be careful not to damage the front axle outboard joint boot.
      • Check that there is no foreign matter on the contact surfaces.
      • Do not push the front axle assembly further out of the vehicle than is necessary.
  3. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH (for 2WD)
    1. Coat the splines of the front drive inboard joint assembly with Toyota genuine ATF WS.
    2. Coat the lip of the front drive shaft oil seal RH with MP grease and Toyota genuine oil seal side lip grease as shown in the illustration.

      HINT:

      Apply a light coat of MP grease and Toyota genuine oil seal side lip grease to the entire circumference of the front drive shaft oil seal RH.

      GTY779876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Cross Section of Front Drive Shaft Oil Seal RH
      MP Grease
      Toyota Genuine Oil Seal Side Lip Grease
    3. Align the inboard joint splines, and securely insert the front drive shaft assembly RH.
      NOTE:
      • Do not damage the front drive shaft oil seal RH.
      • Do not damage the front axle inboard joint boot.
      • When inserting the front drive shaft assembly RH, keep it level.
    4. Install the front drive shaft assembly RH to the drive shaft bearing bracket.

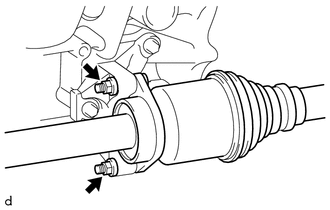

      GTY687140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Tighten 2 nuts to the bolts on the front drive shaft assembly RH.

      Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

    6. Apply Toyota body grease W to the entire contact surface between the front drive shaft assembly and front axle hub sub-assembly surface or only apply 0.1 to 0.3 g (0.00353 to 0.0105 oz.) of Toyota body grease W to the 4 areas on the axle hub bearing shown in the illustration.
      GTY772591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Toyota Body Grease W
    7. Align the matchmarks and install the front drive shaft assembly RH to the front axle hub sub-assembly.

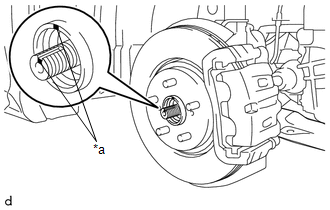

      GTY720316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
      NOTE:
      • Do not damage the front disc brake dust cover.
      • Be careful not to damage the front axle outboard joint boot.
      • Check that there is no foreign matter on the contact surfaces.
      • Do not push the front axle assembly further out of the vehicle than is necessary.
  4. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH (for AWD)
    1. Install a new bearing bracket hole snap ring to the front drive shaft assembly RH.
    2. Coat the splines of the front drive inboard joint assembly with Toyota genuine ATF WS.
    3. Coat the lip of the front drive shaft oil seal RH with MP grease.
    4. Align the inboard joint splines, and securely insert the front drive shaft assembly RH.
      NOTE:
      • Do not damage the transfer case oil seal RH.
      • Do not damage the front axle inboard joint boot.
      • When inserting the front drive shaft assembly RH, keep it level.
    5. Install the bearing bracket hole snap ring and a new No. 1 drive shaft bearing bracket setting bolt.

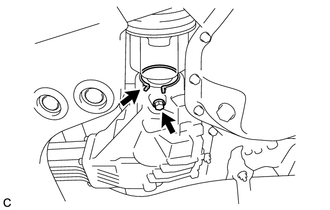

      GTY737133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 32.4 N*m (330 kgf*cm, 24 ft.*lbf)

    6. Apply Toyota body grease W to the entire contact surface between the front drive shaft assembly and front axle hub sub-assembly surface or only apply 0.1 to 0.3 g (0.00353 to 0.0105 oz.) of Toyota body grease W to the 4 areas on the axle hub bearing shown in the illustration.
      GTY772591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Toyota Body Grease W
    7. Align the matchmarks and install the front drive shaft assembly RH to the front axle hub sub-assembly.
      NOTE:
      • Do not damage the front disc brake dust cover.
      • Be careful not to damage the front axle outboard joint boot.
      • Check that there is no foreign matter on the contact surfaces.
      • Do not push the front axle assembly further out of the vehicle than is necessary.

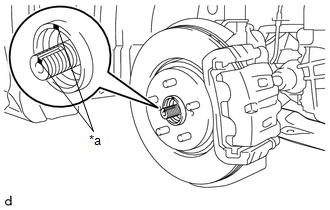

      GTY720315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
  5. INSTALL ENGINE MOUNTING BRACKET RH (for AWD)
    1. Temporarily install the engine mounting insulator RH with the 3 nuts.
    2. Install the engine mounting bracket RH with the 3 bolts.

      Torque: 54 N*m (551 kgf*cm, 40 ft.*lbf)

  6. INSTALL ENGINE MOUNTING INSULATOR RH (for AWD)
    1. Fully tighten engine mounting insulator RH with the 3 nuts.

      Torque: 99 N*m (1010 kgf*cm, 73 ft.*lbf)

    2. Install the 2 hole plugs.
    3. Install the engine mounting insulator RH with the nut.

      Torque: 95 N*m (969 kgf*cm, 71 ft.*lbf)

  7. INSTALL FRONT FENDER APRON SEAL RH (for AWD)
  8. INSTALL FRONT AXLE ASSEMBLY
    1. Pull the front axle out of the vehicle to align the spline of the drive shaft with the front axle and insert the front axle.
      NOTE:
      • Do not pull the front axle further out of the vehicle than is necessary.
      • Do not damage the outboard joint boot.
      • Check for any foreign matter on the speed sensor rotor and insertion part.
      • Do not damage the speed sensor rotor.
  9. INSTALL FRONT LOWER SUSPENSION ARM

    Refer to PROCEDURE - Step 7

  10. INSTALL TIE ROD ASSEMBLY
    1. Connect the tie rod assembly to the steering knuckle with the nut.

      Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

    2. Install a new cotter pin.
      NOTE:

      Further tighten the nut up to 60° if the holes for the cotter pin are not aligned.

  11. INSTALL FRONT SPEED SENSOR
    1. Install the front speed sensor and front flexible hose with the bolt.

      Torque: 18.8 N*m (192 kgf*cm, 14 ft.*lbf)

      NOTE:
      • Do not twist the front speed sensor when installing it.
      • First install the speed sensor harness bracket, and then install the flexible hose bracket.
    2. Install the front speed sensor to the steering knuckle with the bolt.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      NOTE:
      • Prevent foreign matter from attaching to the front speed sensor tip.
      • Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.
      • After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts.
      • To prevent interference between the front speed sensor and magnetic rotor, do not rotate the front speed sensor body during or after the insertion of the front speed sensor body to the steering knuckle.
    3. Engage the 2 claws to install the sensor clamp.
  12. INSTALL FRONT STABILIZER LINK ASSEMBLY

    Refer to PROCEDURE - Step 9

  13. INSTALL FRONT AXLE SHAFT NUT
    1. Clean the threaded parts on the front drive shaft and a new front axle shaft nut using a non-residue solvent.
      NOTE:
      • Be sure to perform this work for a new drive shaft.
      • Keep the threaded parts free of oil and foreign matter.
    2. Install the front axle shaft nut.
      GTY203839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 294 N*m (2998 kgf*cm, 217 ft.*lbf)

    3. Using a chisel and hammer, stake the front axle shaft nut.
  14. INSTALL FRONT WHEELS

    Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

  15. ADD TRANSFER OIL (for AWD)

    Refer to PROCEDURE - Step 2

  16. ADJUST TRANSFER OIL (for AWD)

    Refer to PROCEDURE - Step 1

  17. ADD AUTOMATIC TRANSAXLE FLUID (for 2WD)

    Refer to ADJUSTMENT [08/2016 - ]

  18. ADD AUTOMATIC TRANSAXLE FLUID (for AWD)

    Refer to ADJUSTMENT [08/2016 - ]

  19. ADJUST FRONT WHEEL ALIGNMENT

    Refer to ADJUSTMENT [08/2016 - 11/2017] , or refer to ADJUSTMENT [11/2017 - 08/2018] , or refer to ADJUSTMENT [08/2018 - ]

  20. INSPECT SPEED SENSOR SIGNAL

    Refer to TEST MODE PROCEDURE [12/2015 - 11/2017] , or refer to TEST MODE PROCEDURE [11/2017 - ]

  21. INSTALL FRONT FENDER APRON SEAL LH

    Refer to PROCEDURE - Step 95

  22. INSTALL NO. 2 ENGINE UNDER COVER (for AWD)

    Refer to PROCEDURE - Step 97

  23. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 98
