Adjustment [12/2015 - 11/2017]: Procedure

  1. ADJUST HOOD SUB-ASSEMBLY

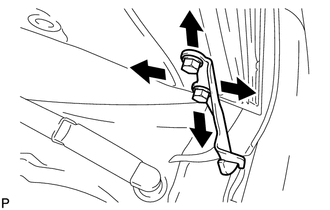

    1. Loosen the 4 hood side hinge bolts.
      GTY299031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Move the hood to adjust the clearance to within the standard range (See step  1).
    3. Tighten the 4 hood side hinge bolts after the adjustment.

      Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

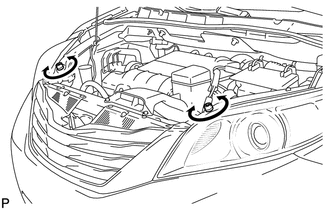

    4. Adjust the height of the hood front end by turning the cushion rubber (See step  1).
      GTY299038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The cushion rubber can be raised and lowered by turning it.

  2. REMOVE RADIATOR GRILLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  3. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)

    Refer to PROCEDURE - Step 2

  4. REMOVE HOOD LOCK NUT CAP

    See step  5

  5. ADJUST HOOD LOCK ASSEMBLY
    1. Loosen the 3 bolts.
      GTY691437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Adjust the hood lock position so that the striker can enter it smoothly.
      GTY306294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Tighten the 3 bolts after the adjustment.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  6. INSTALL HOOD LOCK NUT CAP

    See step  9

  7. INSTALL MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)

    Refer to PROCEDURE - Step 1

  8. ADJUST MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)

    Refer to PROCEDURE - Step 1

  9. INSTALL RADIATOR GRILLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2
