Removal [12/2015 - 11/2017]: Procedure

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [12/2015 - 08/2016] , or refer to INITIALIZATION [08/2016 - 11/2017] ).
REMOVE DOOR SCUFF PLATE ASSEMBLY RH
(Refer to PROCEDURE - Step 3 )
SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
REMOVE COWL SIDE TRIM BOARD RH
(Refer to PROCEDURE - Step 5 )
REMOVE GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
(Refer to PROCEDURE - Step 34 )

REMOVE ECU INTEGRATION BOX RH

Disconnect each connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the clamp.
HINT:

If the vehicle is equipped with a wire harness clamp, disengage the clamp.

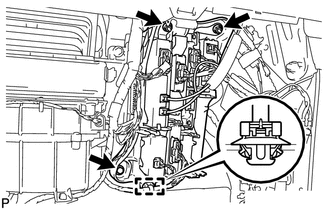

Remove the 2 nuts and bolt and ECU integration box with each ECU.

REMOVE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

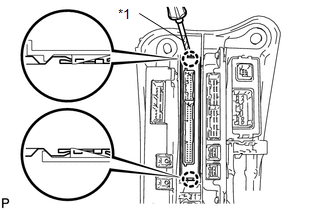

Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and remove the certification ECU.

TEXT IN ILLUSTRATION

*1	Protective Tape
