Removal [11/2017 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Refer to PRECAUTION [08/2016 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [11/2017 - ] ).

  3. REMOVE FRONT DOOR SCUFF PLATE RH

    (Refer to PROCEDURE - Step 4 )

  4. REMOVE COWL SIDE TRIM BOARD RH

    (Refer to PROCEDURE - Step 6 )

  5. SEPARATE FRONT DOOR OPENING TRIM WEATHERSTRIP RH
  6. REMOVE GLOVE COMPARTMENT DOOR SUB-ASSEMBLY

    (Refer to PROCEDURE - Step 33 )

  7. REMOVE PARKING ASSIST ECU (w/ Panoramic View Monitor System)

    Refer to PROCEDURE - Step 6

  8. REMOVE MAYDAY ECU ASSEMBLY (w/ Mayday System)

    Refer to PROCEDURE - Step 7

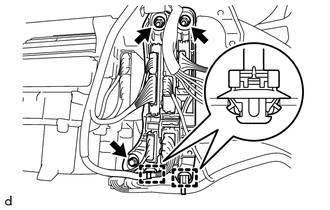

  9. REMOVE ECU INTEGRATION BOX RH
    1. Disconnect each connector.
      GTY756497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 clamps.

      HINT:

      If the vehicle is equipped with a wire harness clamp, disengage the clamp.

    3. Remove the 2 nuts and bolt and ECU integration box RH with each ECU.
  10. REMOVE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

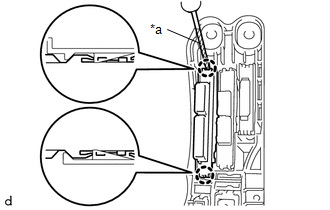

    1. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws to remove the certification ECU (smart key ECU assembly).
      GTY774319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
