Removal [08/2015 - 08/2018]: Procedure

  1. REMOVE FUEL TANK ASSEMBLY (for 3UR-FE)

    (Refer to REMOVAL [08/2015 - ] )

    HINT:

    Remove the fuel tank before removing the left upper control arm.

  2. REMOVE FUEL TANK ASSEMBLY (for 3UR-FBE)

    (Refer to REMOVAL [08/2015 - 08/2018] )

    HINT:

    Remove the fuel tank before removing the left upper control arm.

  3. REMOVE REAR WHEEL
  4. REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  5. SEPARATE REAR DISC BRAKE CYLINDER ASSEMBLY LH

    Refer to PROCEDURE - Step 4

  6. SEPARATE REAR BRAKE FLEXIBLE HOSE

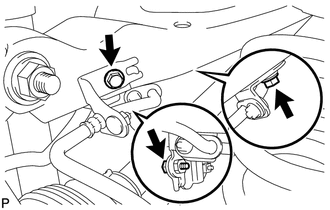

    GTY224688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 3 bolts and disconnect the rear brake flexible hose.
  7. DISCONNECT REAR SPEED SENSOR WIRE
    1. Disconnect the rear speed sensor connector.
    2. Remove the 4 bolts and disconnect the rear speed sensor wire.
      GTY610734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH
    GTY610851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 3 bolts and 3 nuts and remove the rear upper control arm.
