Installation [08/2017 - 08/2019]: Procedure

  1. INSTALL STEERING COLUMN ASSEMBLY

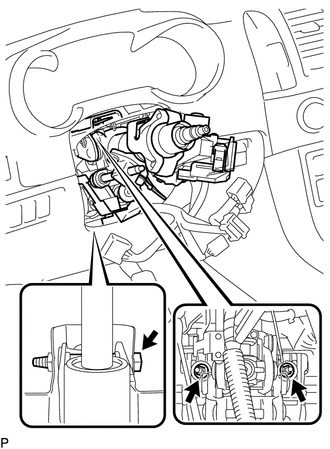

    1. Install the steering column with the bolt and 2 nuts.
      GTY763277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 21 N.m (214 kgf/cm, 16 ft.lbf)

    2. Connect the connectors and wire harness clamps.
    3. Install the earth wire with bolt.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  2. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT SUB-ASSEMBLY
    1. Align the matchmarks on the No. 2 steering intermediate shaft and power steering gear.
      GTY568929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    2. Install the bolt.

      Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

  3. INSTALL STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Align the matchmarks on the steering intermediate shaft and No. 2 steering intermediate shaft.
      GTY561022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    2. Install the bolt.

      Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

    3. Align the matchmarks on the steering column and steering intermediate shaft.
      GTY577829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    4. Install the bolt.

      Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

    5. Install the 3 bolts and nut.
      GTY575530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

  4. INSTALL NO. 3 AIR DUCT SUB-ASSEMBLY

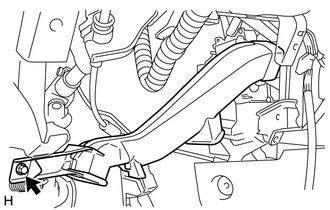

    1. Install the No. 3 air duct sub-assembly with the bolt.
      GTY758663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

  5. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. INSTALL INSTRUMENT SIDE PANEL LH

    Refer to

    PROCEDURE - Step 46 [08/2017 - 08/2018] , or refer to

    PROCEDURE - Step 47 [08/2018 - 08/2019]

  7. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH

    Refer to

    PROCEDURE - Step 44 [08/2017 - 08/2018] , or refer to

    PROCEDURE - Step 45 [08/2018 - 08/2019]

  8. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2

  9. INSTALL COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 45

  10. INSTALL FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 47

  11. INSTALL COMBINATION SWITCH WITH SPIRAL CABLE

    See step  11

  12. INSTALL TILT AND TELESCOPIC MANUAL SWITCH
    1. Attach the claw to install the tilt and telescopic switch.
      GTY611511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  13. INSTALL UPPER STEERING COLUMN COVER

    See step  12

  14. INSTALL LOWER STEERING COLUMN COVER

    See step  13

  15. ADJUST SPIRAL CABLE

    Refer to PROCEDURE - Step 4

  16. INSTALL STEERING WHEEL ASSEMBLY

    See step  5

  17. INSPECT STEERING WHEEL CENTER POINT
  18. INSTALL STEERING PAD

    Refer to PROCEDURE - Step 1

  19. INSTALL LOWER NO. 3 STEERING WHEEL COVER

    Refer to PROCEDURE - Step 2

  20. INSTALL LOWER NO. 2 STEERING WHEEL COVER

    Refer to PROCEDURE - Step 3

  21. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to

    INITIALIZATION [08/2017 - 08/2018] , or refer to

    INITIALIZATION [08/2018 - 08/2019] ).

  22. CHECK SRS WARNING LIGHT

    (Refer to OPERATION CHECK [08/2017 - 08/2019] )

  23. CUSTOMIZE INFORMATION
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch to ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Utility / Customize Setting / Tilt & Telescopic.
    5. Turn the auto away/return function ON.
