Installation [08/2015 - ]: Procedure

INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

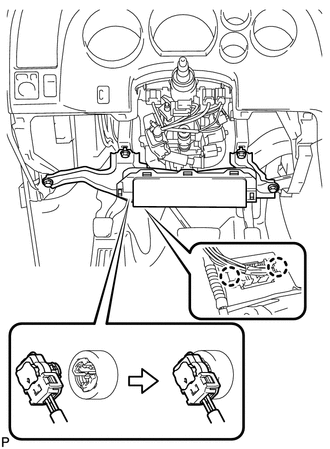

Connect the connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

When handling the airbag connector, take care not to damage the airbag wire harness.

Attach the 2 claws to install the DLC3.
Install the 4 bolts to install the instrument panel airbag.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH
Refer to:

PROCEDURE - Step 54 [08/2015 - 08/2017]

PROCEDURE - Step 44 [08/2017 - 08/2018]

PROCEDURE - Step 45 [08/2018 - 08/2019]

PROCEDURE - Step 48 [08/2019 - ]
INSTALL INSTRUMENT SIDE PANEL LH
Refer to:

PROCEDURE - Step 56 [08/2015 - 08/2017]

PROCEDURE - Step 46 [08/2017 - 08/2018]

PROCEDURE - Step 47 [08/2018 - 08/2019]

PROCEDURE - Step 50 [08/2019 - ]
INSTALL COWL SIDE TRIM BOARD LH
Refer to:

PROCEDURE - Step 46 [08/2015 - 08/2017]

PROCEDURE - Step 45 [08/2017 - 08/2019]

PROCEDURE - Step 47 [08/2019 - ]
INSTALL FRONT DOOR SCUFF PLATE LH
Refer to:

PROCEDURE - Step 48 [08/2015 - 08/2017]

PROCEDURE - Step 47 [08/2017 - 08/2019]

PROCEDURE - Step 49 [08/2019 - ]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to:

INITIALIZATION [08/2015 - 08/2017] , or

INITIALIZATION [08/2017 - 08/2018] , or

INITIALIZATION [08/2018 - 08/2019] .
CHECK SRS WARNING LIGHT
1. Check the SRS warning light Refer to:
2. DIAGNOSIS SYSTEM [08/2015 - 08/2017]
3. OPERATION CHECK [08/2017 - 08/2019]
4. OPERATION CHECK [08/2019 - ]
