Installation [08/2018 - ]: Procedure

INSTALL VANE PUMP ASSEMBLY

HINT:

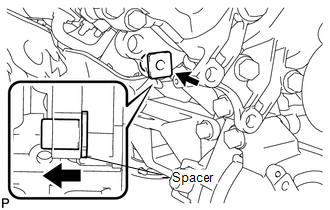

Before performing the following procedures, move the spacer until the vane pump can be installed.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the vane pump with the 2 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 28 N.m (286 kgf/cm, 21 ft.lbf)

CONNECT PRESSURE FEED TUBE

Install a new gasket to the pressure feed tube.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the pressure feed tube with the union bolt.
Torque: 51 N.m (520 kgf/cm, 38 ft.lbf)

CONNECT SOLENOID VALVE CONNECTOR

Connect the solenoid valve connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CONNECT POWER STEERING OIL PRESSURE SENSOR CONNECTOR

Connect power steering oil pressure sensor connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CONNECT NO. 1 OIL RESERVOIR TO PUMP HOSE

Connect the pump hose with the clip.

CONNECT WIRE HARNESS CLAMP

Install the bracket with the bolt.

Torque: 28 N.m (286 kgf/cm, 21 ft.lbf)

INSTALL FAN AND GENERATOR V BELT
Refer to PROCEDURE - Step 1
INSTALL AIR CLEANER ASSEMBLY
Refer to PROCEDURE - Step 14
INSTALL V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 16
ADD POWER STEERING FLUID
BLEED POWER STEERING FLUID
Refer to PROCEDURE - Step 2
INSPECT FOR POWER STEERING FLUID LEAK
INSTALL NO. 1 ENGINE UNDER COVER
Refer to

PROCEDURE - Step 12 [08/2015 - 08/2019] , or refer to

PROCEDURE - Step 12 [08/2019 - 08/2021] , or refer to

PROCEDURE - Step 12 [08/2021 - ]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
Some systems need to be initialized after the cable is reconnected. Refer to PROCEDURE - Step 25 ).
