Installation [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL GENERATOR ASSEMBLY (for 130 A, 150 A Type)
    1. Install the generator with the 3 bolts and nut.
      GTY574539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

    2. Connect the generator connector.
      GTY574536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the generator wire with the nut.

      Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

    4. Install the terminal cap.
    5. Install the harness bracket to the generator with the bolt.

      Torque: 31 N.m (316 kgf/cm, 23 ft.lbf)

  2. INSTALL GENERATOR ASSEMBLY (for 180 A Type)
    1. Install the generator with the 3 bolts and nut.
      GTY574539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

    2. Connect the generator connector.
      GTY574536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the generator wire with the nut.

      Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)

    4. Install the terminal cap.
    5. Install the harness bracket to the generator with the bolt.

      Torque: 31 N.m (316 kgf/cm, 23 ft.lbf)

  3. CONNECT VANE PUMP ASSEMBLY

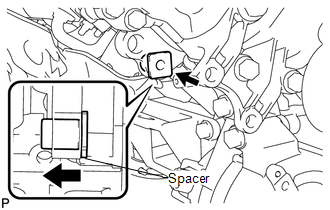

    GTY575301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:

    Before performing the following procedures, move the spacer until the vane pump can be installed.

    1. Install the vane pump to the timing chain cover with the 2 bolts.
      GTY610877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 28 N.m (286 kgf/cm, 21 ft.lbf)

    2. Connect the clamp and 2 power steering connectors.
      GTY550631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FRONT FENDER APRON SEAL RH

    Refer to PROCEDURE - Step 17

  5. INSTALL FAN SHROUD

    Refer to PROCEDURE - Step 7

  6. CONNECT OUTLET RADIATOR HOSE

    Refer to PROCEDURE - Step 9

  7. INSTALL INLET RADIATOR HOSE

    Refer to PROCEDURE - Step 8

  8. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 3

  9. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  10. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16

  11. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 12

  12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2017] , or refer to INITIALIZATION [08/2017 - 08/2018] ).
