Installation [08/2015 - 08/2018]: Procedure

WARNING: This page is about a different car, the 2018 Toyota Sequoia, 2017 Toyota Sequoia, and 2016 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL OUTLET RADIATOR HOSE
    1. Install the outlet radiator hose into the radiator.

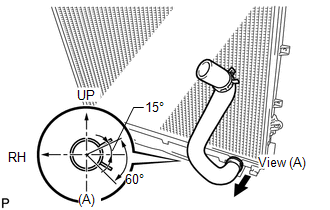

      GTY595183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Install the hose so that the direction of the hose clamp is as indicated in the illustration.

  2. INSTALL RADIATOR ASSEMBLY
    1. Set the radiator bracket hooks to the radiator support holes.

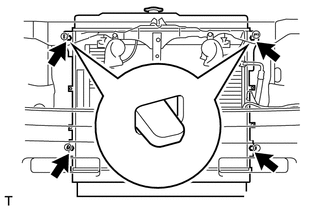

      GTY599638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the radiator with the 4 bolts.

      Torque: 18 N.m (184 kgf/cm, 13 ft.lbf)

  3. INSTALL NO. 1 RADIATOR TO SUPPORT SEAL (for LH Side)
    1. Install the No. 1 radiator to support seal with the 3 clips.

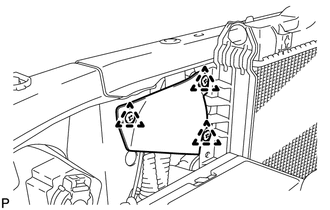

      GTY611262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 1 RADIATOR TO SUPPORT SEAL (for RH Side)
    1. Install the No. 1 radiator to support seal with the 3 clips.

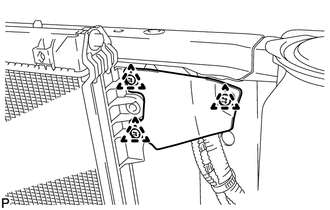

      GTY608577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL RADIATOR SIDE DEFLECTOR LH
    1. Install the deflector with the 6 clips.

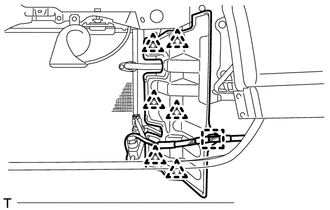

      GTY574991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the wire harness clamp.
  6. INSTALL RADIATOR SIDE DEFLECTOR RH
    1. Install the deflector with the 6 clips.
      GTY561181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL FAN SHROUD
    1. Install the fan pulley to the fan bracket.

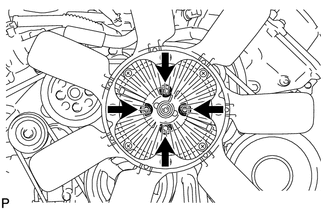

      GTY547911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Place the shroud together with the coupling fan between the radiator and engine.
      NOTE:

      Be careful not to damage the radiator core.

    3. Temporarily install the fluid coupling fan to the fan bracket with the 4 nuts. Tighten the nuts as much as possible by hand.
    4. Attach the shroud claws to the radiator as shown in the illustration.

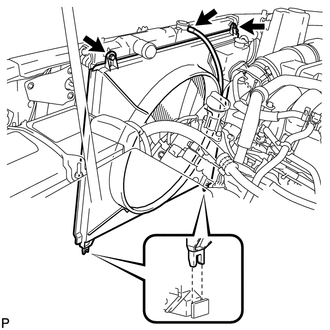

      GTY611413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the shroud with the 2 bolts.

      Torque: 6.5 N.m (66 kgf/cm, 58 in.lbf)

    6. Connect the reservoir hose to the upper radiator tank.
    7. Install the fan and generator V belt (Refer to PROCEDURE - Step 1 ).
    8. Tighten the 4 nuts of the fluid coupling fan.

      Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

  8. INSTALL INLET RADIATOR HOSE
    1. Install the inlet radiator hose.

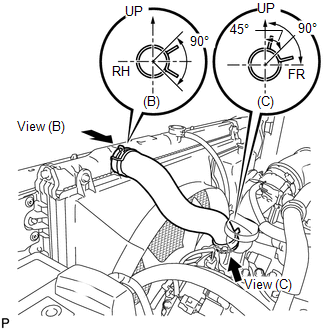

      GTY565126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Install the hose so that the direction of the hose clamp is as indicated in the illustration.

  9. CONNECT OUTLET RADIATOR HOSE
    1. Connect the outlet radiator hose to the water inlet housing.

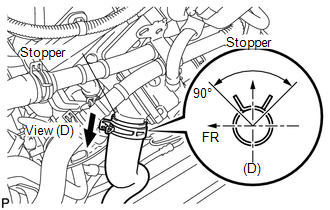

      GTY541633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. ADD ENGINE COOLANT

    See step  3

  11. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  12. INSTALL FRONT BUMPER COVER ASSEMBLY
    1. Install the front bumper cover assembly (Refer to INSTALLATION [08/2015 - 08/2017] Refer to INSTALLATION [08/2017 - ] ).
  13. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 12

  14. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16
