INSTALL STARTER ASSEMBLY

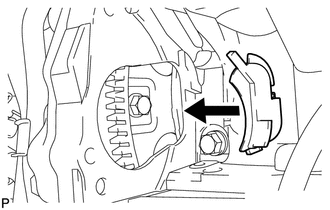

Install the flywheel housing side cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the starter with the 2 bolts.
Torque: 37 N.m (377 kgf/cm, 27 ft.lbf)
Install the starter wire with the nut.
Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)
Connect the starter connector.
Attach the 2 wire harness clamps.

INSTALL STARTER COVER

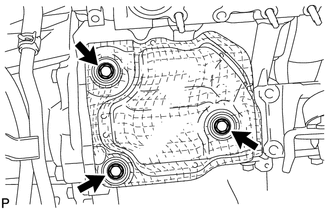

Install the starter cover with the 3 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 12 N.m (117 kgf/cm, 8 ft.lbf)

INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH
Refer to PROCEDURE - Step 1
INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
Refer to PROCEDURE - Step 2
INSTALL FRONT NO. 3 FLOOR HEAT INSULATOR
Refer to PROCEDURE - Step 7
INSTALL FRONT EXHAUST PIPE ASSEMBLY
Refer to PROCEDURE - Step 8

INSTALL ENGINE OIL LEVEL DIPSTICK GUIDE

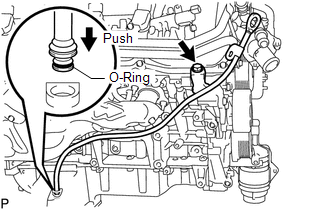

Apply a light coat of engine oil to a new O-ring.

Install the O-ring to the guide.

Install the dipstick guide with the bolt.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
Connect the wire harness clamp.
Install the dipstick.

INSTALL FRONT FENDER APRON SEAL RH
Refer to PROCEDURE - Step 17
INSPECT FOR EXHAUST GAS LEAK
Refer to PROCEDURE - Step 13
INSTALL NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 12
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2017] , or refer to INITIALIZATION [08/2017 - 08/2018] ).
