Installation [08/2015 - ]: Procedure

  1. INSTALL FRONT PROPELLER SHAFT
    1. Align the matchmarks on the differential and propeller shaft flange.

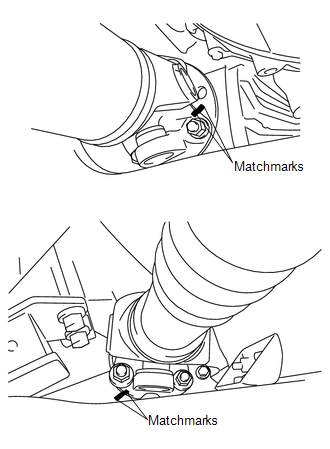

      GTY601614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Align the matchmarks on the transfer and propeller shaft flange.
    3. Install the front propeller shaft assembly with the 8 nuts and 8 washers.

      Torque: 80 N.m (816 kgf/cm, 59 ft.lbf)

  2. INSTALL PROPELLER SHAFT HEAT INSULATOR

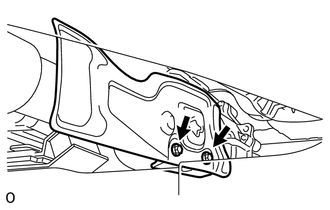

    GTY598087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the heat insulator to the heat insulator bracket with the 2 bolts.

      Torque: 16 N.m (163 kgf/cm, 12 ft.lbf)
