Removal [08/2015 - 08/2017]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - 08/2017] ).

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2017] ).

  3. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 12

  4. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 14

  5. REMOVE INSTRUMENT SIDE PANEL LH

    Refer to PROCEDURE - Step 15

  6. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17

  7. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

    Refer to PROCEDURE - Step 26

  8. REMOVE COMBINATION METER ASSEMBLY

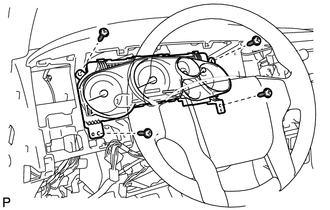

    1. Remove the 4 screws and combination meter assembly.
      GTY427141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

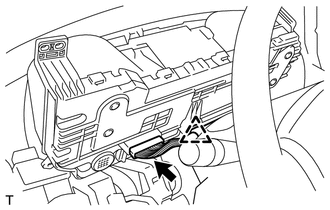

    2. Disconnect the connector and detach the wire harness clamp.
      GTY440630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
