Removal [08/2015 - ]: Procedure

  1. REMOVE BACK DOOR CENTER GARNISH

    Refer to PROCEDURE - Step 4 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 4 [08/2019 - ]

  2. REMOVE BACK DOOR SIDE GARNISH RH

    Refer to PROCEDURE - Step 5 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 5 [08/2019 - ]

  3. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 6 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 6 [08/2019 - ]

  4. REMOVE BACK DOOR STRAP COVER

    Refer to PROCEDURE - Step 8 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 8 [08/2019 - ]

  5. REMOVE BACK DOOR PULL STRAP

    Refer to PROCEDURE - Step 9 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 9 [08/2019 - ]

  6. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    Refer to PROCEDURE - Step 10 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 10 [08/2019 - ]

  7. REMOVE BACK DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 12 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 12 [08/2019 - ]

  8. REMOVE MULTIPLEX NETWORK BODY ECU (w/ Power Back Door)

    Refer to PROCEDURE - Step 14 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 14 [08/2019 - ]

  9. REMOVE NO. 2 BACK DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 15 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 15 [08/2019 - ]

  10. REMOVE REAR WIPER ARM HEAD CAP

    Refer to PROCEDURE - Step 9

  11. REMOVE REAR WIPER BLADE ASSEMBLY

    Refer to PROCEDURE - Step 10

  12. REMOVE REAR WIPER MOTOR ASSEMBLY

    Refer to PROCEDURE - Step 11

  13. REMOVE REAR WIPER MOTOR GROMMET

    Refer to PROCEDURE - Step 12

  14. REMOVE REAR WIPER STOPPER

    Refer to PROCEDURE - Step 22 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 22 [08/2019 - ]

  15. REMOVE BACK DOOR OUTSIDE MOULDING LH

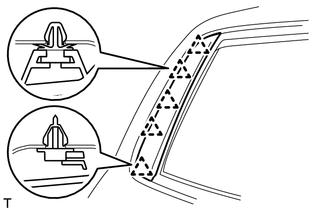

    1. Disengage the 5 clips and remove the back door outside moulding.
      GTY596246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE BACK DOOR OUTSIDE MOULDING RH

    HINT:

    Use the same procedure as for the LH side.

  17. REMOVE BACK DOOR GLASS OUTER WEATHERSTRIP ASSEMBLY

    Refer to PROCEDURE - Step 4

  18. REMOVE BACK DOOR GLASS RUN

    Refer to PROCEDURE - Step 26 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 26 [08/2019 - ]

  19. REMOVE BACK DOOR GLASS

    Refer to PROCEDURE - Step 27 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 27 [08/2019 - ]

  20. REMOVE BACK DOOR POWER WINDOW REGULATOR ASSEMBLY

    Refer to PROCEDURE - Step 28 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 28 [08/2019 - ]

  21. REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

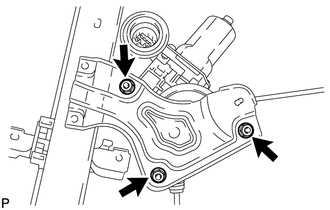

    1. Remove the 3 nuts and power window regulator motor.
      GTY242117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and power window regulator base plate.
      GTY221637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

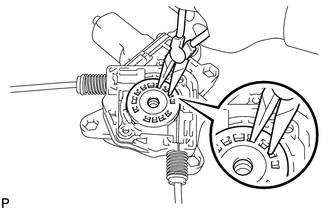

    3. Using needle nose pliers, remove the drum and wire guide from the motor.
      GTY241890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not use a screwdriver, etc. when removing them.
