Removal [08/2015 - ]: Procedure

  1. REMOVE POWER BACK DOOR ROD (w/ Power Back Door)

    Refer to PROCEDURE - Step 3 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 3 [08/2019 - ]

  2. REMOVE BACK DOOR CENTER GARNISH

    Refer to PROCEDURE - Step 4 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 4 [08/2019 - ]

  3. REMOVE BACK DOOR SIDE GARNISH RH

    Refer to PROCEDURE - Step 5 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 5 [08/2019 - ]

  4. REMOVE BACK DOOR SIDE GARNISH LH

    Refer to PROCEDURE - Step 6 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 6 [08/2019 - ]

  5. REMOVE BACK DOOR STRAP COVER

    Refer to PROCEDURE - Step 8 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 8 [08/2019 - ]

  6. REMOVE BACK DOOR PULL STRAP

    Refer to PROCEDURE - Step 9 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 9 [08/2019 - ]

  7. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

    Refer to PROCEDURE - Step 10 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 10 [08/2019 - ]

  8. REMOVE BACK DOOR SERVICE HOLE COVER

    Refer to PROCEDURE - Step 12 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 12 [08/2019 - ]

  9. REMOVE REAR WIPER ARM HEAD CAP
    1. Disengage the claw and remove the rear wiper arm head cap.
      GTY596056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR WIPER BLADE ASSEMBLY
    1. Remove the nut and remove the rear wiper blade assembly.
      GTY217996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR WIPER MOTOR ASSEMBLY
    1. Disengage the clamp and disconnect the connector.

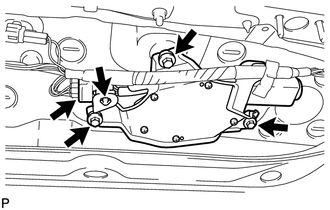

      GTY610845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the 3 bolts and remove the rear wiper motor.
      NOTE:

      Do not try to remove the bolts since they are integrated with the motor.

  12. REMOVE REAR WIPER MOTOR GROMMET
    1. Remove the rear wiper motor grommet.
      GTY247237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
