Disassembly [08/2019 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2019 - ] ).

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:

    When disconnecting the cable some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2019 - ] ).

  3. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH (for 14 Speakers)
    1. Disengage the 3 clips and remove the front door lower frame bracket garnish.
      GTY611402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
  4. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH
    1. Disengage the 3 clips and remove the front door lower frame bracket garnish.
      GTY599266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG
    1. Using a moulding remover, disengage the 4 claws and remove the front door inside handle bezel plug.
      GTY241591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT ARMREST BASE UPPER PANEL
    1. Disengage the 2 clips and 5 claws and remove the front armrest base upper panel.
      GTY611439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
  7. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
    GTY573649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the front door armrest cover.
    2. Remove the 2 screws.
    3. Disengage the 10 clips.
      GTY605348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the connector.
    5. Disconnect the front door lock remote control cable and front door inside locking cable and remove the front door trim board sub-assembly.
      GTY611377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SEAT MEMORY SWITCH (for Driver Side with Memory)

    Refer to PROCEDURE - Step 5

  9. REMOVE FRONT DOOR INSIDE HANDLE BEZEL
    1. Remove the 4 screws and remove the front door inside handle bezel.
      GTY573648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY
    1. Remove the 3 screws and remove the front door inside handle sub-assembly.
      GTY610711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE FRONT DOOR GLASS INNER WEATHERSTRIP
    1. Raise the 8 claws of the front door glass inner weatherstrip and then remove the front door glass inner weatherstrip from the front door trim board sub-assembly, as shown in the illustration.
      GTY218011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE SIDE AIRBAG SENSOR ASSEMBLY

    Refer to PROCEDURE - Step 8

  13. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 5

  14. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY

    Refer to PROCEDURE - Step 6

  15. REMOVE FRONT DOOR GLASS OUTER WEATHERSTRIP ASSEMBLY

    Refer to PROCEDURE - Step 6

  16. REMOVE OUTER MIRROR CONTROL ECU ASSEMBLY (for Driver Side with Memory)
    1. Disconnect the 2 connectors.
      GTY610885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and remove the outer mirror control ECU assembly.
  17. REMOVE FRONT DOOR NO. 1 TRIM BRACKET
    1. Remove the 2 screws and remove the front door No. 1 trim bracket.
      GTY611540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE FRONT DOOR SERVICE HOLE COVER
    1. Disconnect the connectors and disengage the clamps.
      GTY573668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the front door service hole cover.
      GTY217289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Remove any tape remaining on the door side.

  19. REMOVE FRONT DOOR GLASS RUN
    1. Remove the front door glass run.
      GTY573670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY
    GTY573672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Provisionally install the power window switch.
    2. Move the front door glass until the 2 bolts can be seen through the service holes.
    3. Remove the 2 bolts.
      NOTE:

      Do not drop or damage the front door glass subassembly when removing the bolts.

    4. Remove the front door glass sub-assembly in the direction indicated by the arrows in the illustration.
      GTY242241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the front door glass subassembly.

    5. Remove the power window switch.
  21. REMOVE FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY
    1. Disconnect the connector.
      GTY569983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen bolt A.
    3. Remove the 5 bolts, then remove the front door window regulator sub-assembly.
      NOTE:

      Do not drop or damage the front door window regulator sub-assembly when removing the bolts.

      HINT:

      Remove the front door window regulator sub-assembly through the service hole.

  22. REMOVE FRONT DOOR FRAME FRONT LOWER SUB-ASSEMBLY
    1. Remove the 2 bolts and remove the front door frame front lower sub-assembly.
      GTY610835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not drop or damage the front door frame front lower sub-assembly when removing the bolt.

  23. REMOVE FRONT DOOR FRAME REAR LOWER SUB-ASSEMBLY
    1. Remove the 2 bolts and remove the front door frame rear lower sub-assembly.
      GTY611304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not drop or damage the front door frame rear lower sub-assembly when removing the bolt.

  24. REMOVE FRONT NO. 1 DOOR STIFFENER CUSHION
    1. Disengage the 2 clips and remove the front No. 1 door stiffener cushion.
      GTY610957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE FRONT DOOR CHECK ASSEMBLY
    1. Remove the 2 nuts and bolt and remove the front door check assembly.
      GTY605353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE FRONT DOOR WEATHERSTRIP
    1. Disengage the 39 clips and remove the front door weatherstrip.
      GTY611484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE FRONT DOOR PANEL PROTECTOR
    1. Disengage the 8 clips and remove the front door panel protector.
      GTY573660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE FRONT DOOR OUTSIDE HANDLE COVER
    1. Remove the hole plug.
      GTY573659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using "TORX" socket wrench T30, loosen the screw and remove the front door outside handle cover.
  29. REMOVE DOOR LOCK CYLINDER (for Driver Side)
    1. Disengage the 2 claws and remove the door lock cylinder.
      GTY605351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE FRONT DOOR LOCK

    Refer to PROCEDURE - Step 13

  31. REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY

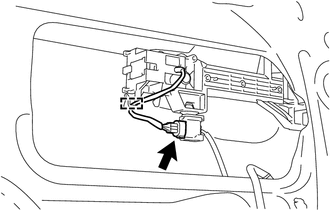

    1. Detach the clamp and disconnect the connector.
      GTY919800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the front door handle assembly by sliding and pulling it in the direction indicated by the arrow mark in the illustration.
      GTY919801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE FRONT DOOR OUTSIDE HANDLE REAR PAD
    1. Disengage the 2 claws and remove the front door outside handle rear pad.
      GTY611149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE FRONT DOOR OUTSIDE HANDLE FRONT PAD
    1. Disengage the 3 claws and remove the front door outside handle front pad.
      GTY611127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY
    1. Using "TORX" socket wrench T30, loosen the screw.
      GTY611524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw and slide the front door outside handle frame sub-assembly to remove it.
  35. REMOVE CUSHION
    1. Remove the cushions from the door panel.
      GTY573679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
