Removal [08/2015 - ]: Procedure

  1. REMOVE FRONT LOWER DOOR FRAME BRACKET GARNISH RH

    Refer to PROCEDURE - Step 3 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 3 [08/2019 - ]

  2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG RH

    Refer to PROCEDURE - Step 5 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 5 [08/2019 - ]

  3. REMOVE FRONT UPPER ARMREST BASE PANEL RH

    Refer to PROCEDURE - Step 6 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 6 [08/2019 - ]

  4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 7 [08/2015 - 08/2019] , or refer to PROCEDURE - Step 7 [08/2019 - ]

  5. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY
    1. Disconnect the speaker connector.

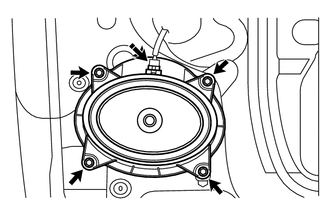

      GTY611658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 screws.
    3. Disengage the 3 claws and remove the speaker.

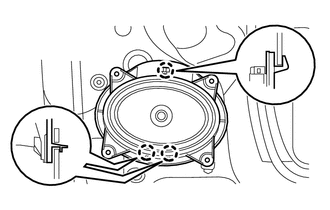

      GTY610673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the cone part of the speaker.

  6. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY (for 14 Speakers)
    GTY611292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disengage the 3 claws and remove the speaker.
      NOTE:

      Do not touch the cone part of the speaker.
