Removal [08/2015 - 08/2019]: Procedure
- PRECAUTION NOTE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [08/2015 - 08/2017] , or refer to PRECAUTION [08/2017 - 08/2019] ).
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [08/2015 - 08/2017] , or refer to INITIALIZATION [08/2017 - 08/2018] , or refer to INITIALIZATION [08/2018 - 08/2019] ).
- REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
- Remove the instrument panel (Refer to REMOVAL [08/2015 - 08/2017] , or refer to REMOVAL [08/2017 - 08/2018] , or refer to REMOVAL [08/2018 - 08/2019] ).
- REMOVE NO. 1 HEATER TO REGISTER DUCT
Refer to PROCEDURE - Step 59 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 51 [08/2017 - 08/2018] , or refer to PROCEDURE - Step 52 [08/2018 - 08/2019]
- REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT
Refer to PROCEDURE - Step 61 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 53 [08/2017 - 08/2018] , or refer to PROCEDURE - Step 54 [08/2018 - 08/2019]
- REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT
Refer to PROCEDURE - Step 60 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 52 [08/2017 - 08/2018] , or refer to PROCEDURE - Step 53 [08/2018 - 08/2019]
- REMOVE DEFROSTER NOZZLE ASSEMBLY
Refer to PROCEDURE - Step 62 [08/2015 - 08/2017] , or refer to PROCEDURE - Step 54 [08/2017 - 08/2018] , or refer to PROCEDURE - Step 55 [08/2018 - 08/2019]

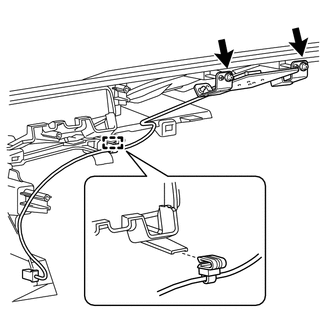

- REMOVE NAVIGATION ANTENNA ASSEMBLY
