Removal [05/2019 - ]: Procedure

  1. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)
    1. Remove the rear seat headrest assembly.
  2. REMOVE REAR SEAT HEADREST ASSEMBLY (for LH Side)
    1. Remove the rear seat headrest assembly.
  3. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY
    1. Remove the rear seat center headrest assembly.
  4. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
    1. Lift the front edge of the rear seat cushion assembly as shown in the illustration and disengage the 2 rear seat cushion frame hooks on the front side of the rear seat cushion assembly from the rear seat cushion lock hooks.

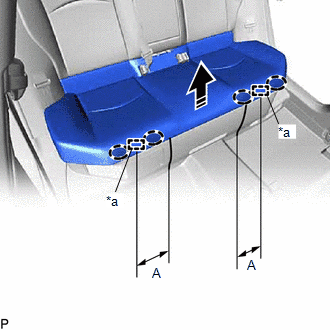

      GTY882137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rear Seat Cushion Frame Hook Front Side
      Place Hand Here
      Remove in this Direction
      NOTE:
      • Be sure to hold the parts of the seat cushion assembly directly next to the rear seat cushion frame hooks when lifting it. Lifting a different part of the cushion may deform the rear seat cushion frame.
      • In order to prevent the rear seatback assembly LH or rear seatback assembly RH from being damaged, do not remove the rear seat cushion assembly until the rear seatback assembly LH and rear seatback assembly RH have been removed.

      Standard Measurement

      Area Measurement
      A 135 mm (5.31 in.)
    2. Using a screwdriver with its tip wrapped with protective tape, disconnect the rear center seat outer belt assembly as shown in the illustration.

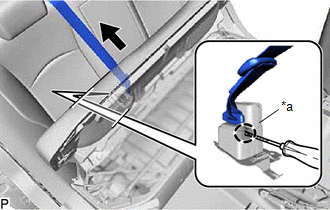

      GTY888760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Insert Screwdriver Here
  5. REMOVE REAR SEATBACK ASSEMBLY RH
    1. Fold the rear seatback assembly RH forward.
    2. Disengage the 2 fasteners.

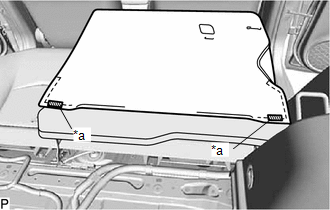

      GTY595901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fastener

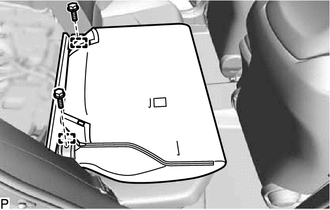

    3. GTY538465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 bolts.

    4. Disengage the 2 guides and remove the rear seatback assembly RH.
      NOTE:

      Be careful not to damage the vehicle body.

  6. REMOVE REAR SEATBACK ASSEMBLY LH
    1. Fold the rear seatback assembly LH forward.
    2. Disengage the 2 fasteners.

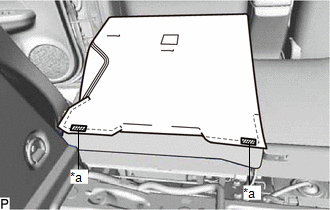

      GTY549012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Fastener

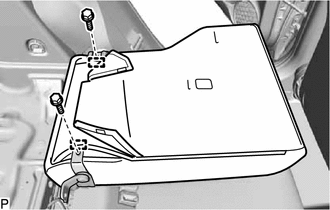

    3. GTY577153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 bolts.

    4. Disengage the 2 guides and remove the rear seatback assembly LH.
      NOTE:

      Be careful not to damage the vehicle body.

  7. REMOVE REAR SEAT CUSHION ASSEMBLY

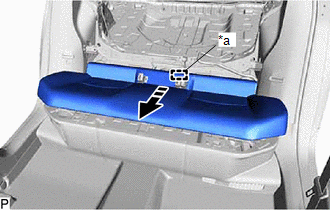

    1. GTY745121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rear Seat Cushion Frame Hook Rear Side
      Remove in this Direction

      Disengage the rear seat cushion frame hook on the rear side of the rear seat cushion assembly as shown in the illustration.

      NOTE:

      Be careful not to damage the vehicle body.

  8. REMOVE REAR SEAT CUSHION LOCK HOOK
    1. Disengage the 2 claws to remove the rear seat cushion lock hook as shown in the illustration.

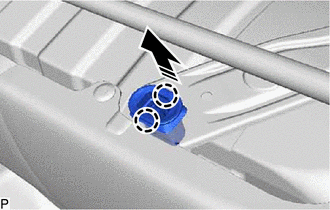

      GTY556471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.
