Removal [06/2015 - 11/2018]: Procedure
- CAUTIONS FOR HIGH VOLTAGE SYSTEM COMPONENTS
See step 1
- CAUTIONS FOR INTAKE SYSTEM COMPONENTS
Refer to PROCEDURE - Step 3
- REMOVE SERVICE PLUG GRIP (for EV)
Refer to REMOVAL [06/2015 - 11/2018]
- REMOVE FC STACK SERVICE PLUG GRIP
Refer to REMOVAL [06/2015 - 11/2018]
- REMOVE WINDSHIELD WIPER MOTOR AND LINK
Refer to REMOVAL [06/2015 - ]
- REMOVE NO. 2 HEATER AIR DUCT SPLASH SHIELD SEAL
Refer to PROCEDURE - Step 8
- REMOVE WATER GUARD PLATE LH
Refer to PROCEDURE - Step 9
- REMOVE COWL BODY MOUNTING REINFORCEMENT RH
Refer to PROCEDURE - Step 10
- REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 11
- REMOVE COOL AIR INTAKE DUCT SEAL
Refer to PROCEDURE - Step 1
- REMOVE AIR CLEANER INLET
Refer to PROCEDURE - Step 24
- REMOVE AIR CLEANER WITH ELEMENT ASSEMBLY
Refer to PROCEDURE - Step 25
- REMOVE AIR CLEANER SUPPORT
- REMOVE INVERTER COVER
Refer to PROCEDURE - Step 27
- REMOVE INVERTER TERMINAL COVER
Refer to PROCEDURE - Step 17
- CHECK TERMINAL VOLTAGE
Refer to PROCEDURE - Step 18
- TEMPORARILY TIGHTEN INVERTER TERMINAL COVER
Refer to PROCEDURE - Step 19
- SEPARATE FC WATER PUMP DRAIN HOSE ASSEMBLY
- REMOVE FC INVERTER INPUT JUNCTION COVER WARNING:
Wear insulated gloves.

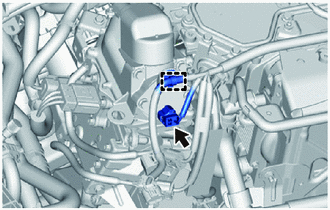

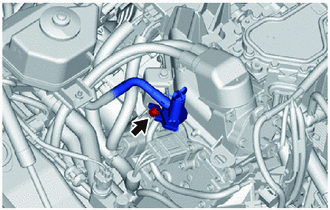

- Disconnect the FC inverter input junction cover connector.
- Disengage the clamp to separate the wire harness from the FC inverter input junction cover.

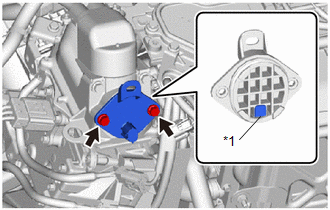

- Remove the 2 bolts and FC inverter input junction cover from the FC inverter input junction assembly.

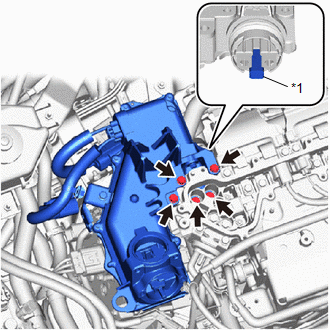

*1 Interlock Connector NOTE:- Because the FC inverter input junction cover has an interlock connector, pull it straight out.
- Do not touch the rubber seal of the FC inverter input junction cover.
- Disconnect the FC inverter input junction cover connector.
- DISCONNECT FRAME WIRE WARNING:
Wear insulated gloves.

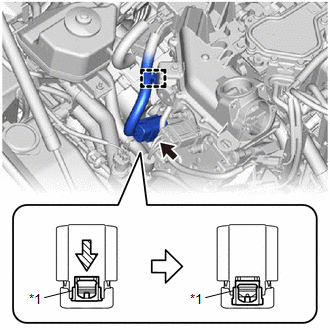

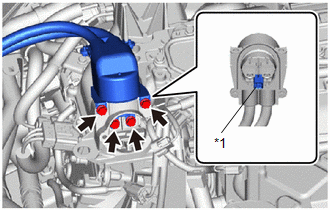

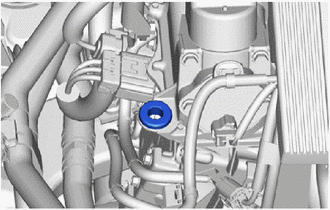

- Using an insulated tool, remove the 4 bolts and disconnect the frame wire from the FC inverter input junction assembly.
*1 Interlock Connector NOTE:- Because the frame wire has an interlock connector, pull it out straight.
- When disconnecting, do not damage the terminal portion, connector housing, or FC inverter input junction assembly.
- Do not touch the rubber seal or terminal portion of the frame wire.
- Insulate the terminal portion of the frame wire by wrapping it with insulating tape.
- To prevent contamination by foreign matter or water droplets, cover the openings of the FC inverter input junction assembly with protective tape.

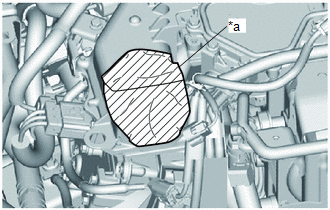

*a Protective Tape
- Using an insulated tool, remove the 4 bolts and disconnect the frame wire from the FC inverter input junction assembly.
- REMOVE INVERTER TERMINAL COVER
Refer to PROCEDURE - Step 17
- REMOVE FC INVERTER INPUT JUNCTION ASSEMBLY WARNING:
Wear insulated gloves.
NOTE:Do not allow foreign matter or water droplets to enter the inverter with converter assembly.
- Disengage the clamp to separate the wire harness from the FC inverter input junction assembly.

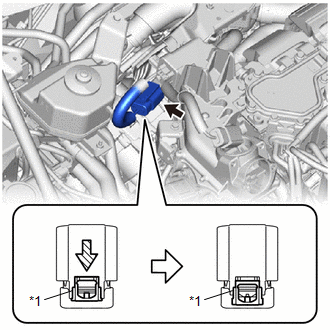

*1 Green-colored Lock - Pull out the green lock of the connector and disconnect the connector from the FC water and hydrogen pump inverter assembly as shown in the illustration.NOTE:
- Do not touch the connector terminals.
- Insulate the opening of the connector by wrapping it with insulating tape.
- Pull out the green lock of the connector and disconnect the connector from the electric heater sub-assembly as shown in the illustration.
*1 Green-colored Lock NOTE:- Do not touch the connector terminals.
- Insulate the opening of the connector by wrapping it with insulating tape.
- Using an insulated tool, remove the 5 bolts and FC inverter input junction assembly from the inverter with converter assembly.
*1 Interlock Connector NOTE:- Because the FC inverter input junction assembly has an interlock connector, pull it straight out.
- When removing, do not damage the terminal portion, connector housing or inverter with converter assembly.
- Do not touch the seal packing or terminal portion of the FC inverter input junction assembly.
- If the seal packing of the FC inverter input junction assembly has any damage or deformation, replace it with a new one.
- Insulate the terminal portion of the FC inverter input junction assembly by wrapping it with insulating tape.
- To prevent contamination by foreign matter or water droplets, cover the opening of the inverter with converter assembly with protective tape.

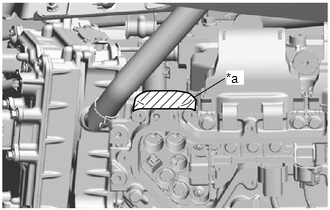

*a Protective Tape
- Disengage the clamp to separate the wire harness from the FC inverter input junction assembly.
- TEMPORARILY TIGHTEN INVERTER TERMINAL COVER
Refer to PROCEDURE - Step 19

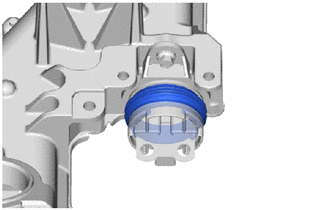

- REMOVE PACKING SEAL
HINT:
Perform this procedure when the packing seal must be replaced.
- REMOVE HIGH VOLTAGE FUSE NOTE:
Do not allow foreign matter or water droplets to enter the FC inverter input junction assembly.
HINT:
Perform this procedure when the high voltage fuse must be replaced.

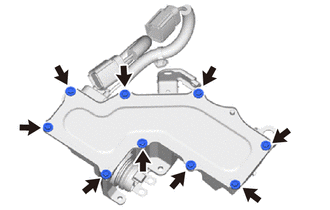

- Remove the 9 bolts.

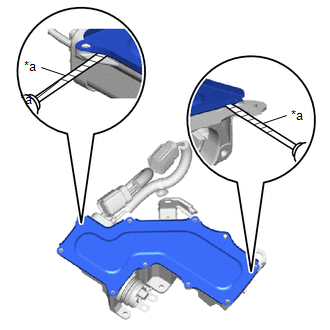

- Using a screwdriver with its tip wrapped in protective tape, pry the 2 locations shown in the illustration and remove the junction block service cover from the FC inverter input junction assembly.NOTE:
- Do not scratch or damage the sealing surface between the junction block service cover and FC inverter input junction assembly.
- If the junction block service cover has any deformation, replace it with a new one.

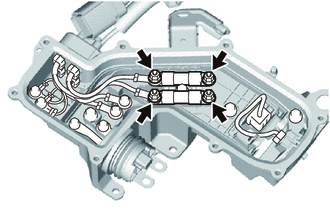

*a Protective Tape - Remove the 4 nuts and 2 high voltage fuses from the FC inverter input junction assembly.
- Remove the 9 bolts.
