Removal [06/2015 - 11/2018]: Procedure

REMOVE COOL AIR INTAKE DUCT SEAL

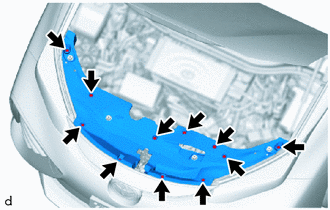

Remove the 11 clips and cool air intake duct seal.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE FRONT BUMPER ASSEMBLY

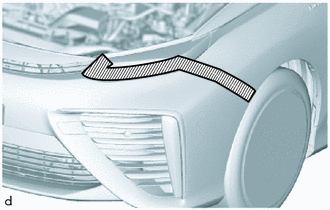

Apply protective tape around the front bumper assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

HINT:

Use the same procedure for the RH.

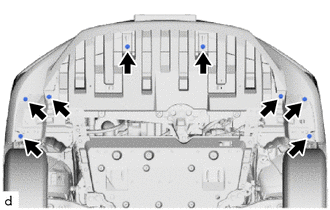

Remove the 6 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

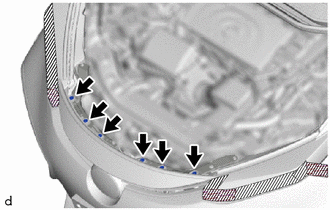

Remove the 8 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

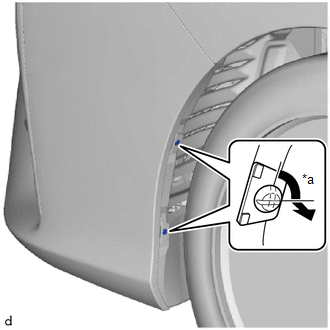

Using a screwdriver, turn the pins 90 degrees and remove the 2 pin hold clips.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

90°

HINT:

When removing the pin hold clips, turn the steering wheel right and left to ensure enough space to work.
Use the same procedure for the RH.

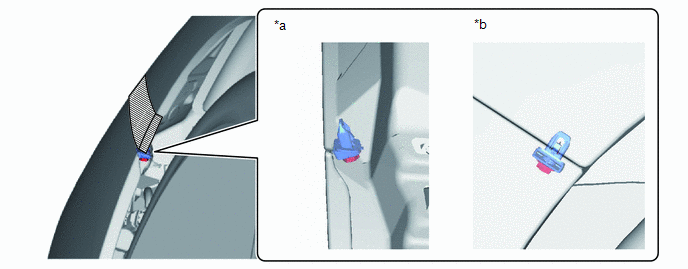

Fold back a part of the edge of the front fender liner as shown in the illustration, and remove the screw and clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Back view of the vehicle

Side view of the vehicle

HINT:

Use the same procedure for the RH side.

Disengage the claws as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place Hands Here
	Remove in this Direction

HINT:

Use the same procedure for the RH side.

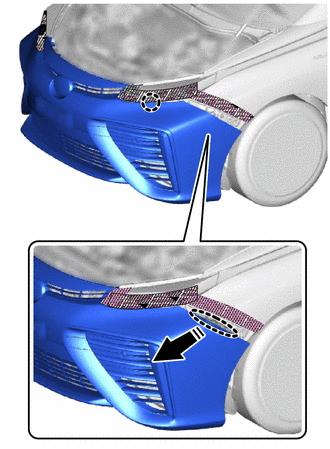

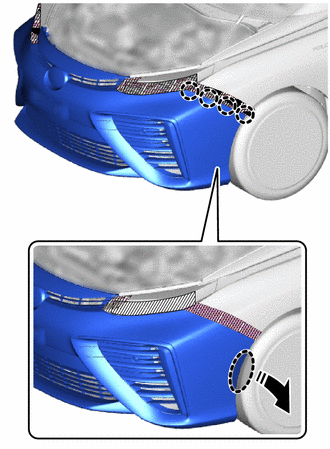

Disengage the claw as shown in the illustration.

	Place Hands Here
	Remove in this Direction

NOTE:

Because the vehicle wire harness is connected to the front bumper assembly, hold the front bumper assembly in a position where the connectors and clamps can be disconnected.

HINT:

Use the same procedure for the RH side.

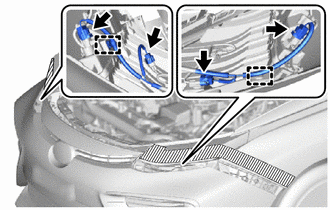

Using a clip remover, disengage the clamps.

NOTE:

Be careful not to damage the clamps, such as by prying them with excessive force using a clip remover.

Disconnect the 4 connectors.

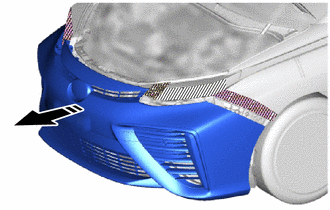

Remove the front bumper assembly as shown in the illustration.

Remove in this Direction
