Removal [06/2015 - 11/2018]: Procedure
- CAUTIONS FOR HIGH VOLTAGE SYSTEM COMPONENTS
See step 1
- REMOVE SERVICE PLUG GRIP (for EV)
Refer to REMOVAL [06/2015 - 11/2018]
- REMOVE FC STACK SERVICE PLUG GRIP
Refer to REMOVAL [06/2015 - 11/2018]
- REMOVE INVERTER COVER
Refer to PROCEDURE - Step 27
- REMOVE INVERTER TERMINAL COVER WARNING:
Wear insulated gloves.
NOTE:Do not allow foreign matter or water droplets to enter the inverter with converter assembly.

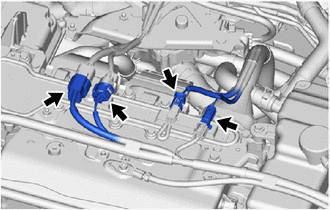

- Disconnect the 4 connectors.

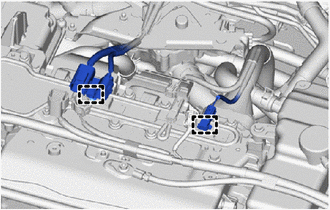

- Disengage the 2 clamps to separate the wire harnesses from the inverter terminal cover.

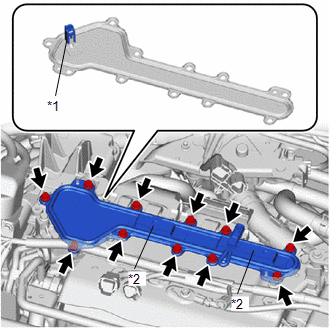

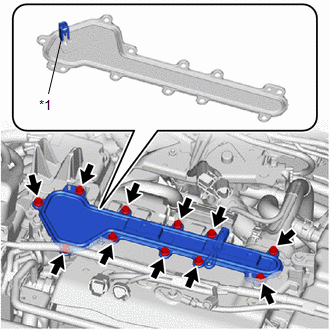

- Remove the 11 bolts and inverter terminal cover from the inverter with converter assembly.NOTE:
- The inverter terminal cover has an interlock connector, so pull it up vertically.
- Do not touch the rubber seal of the inverter terminal cover.
*1 Interlock Connector
- Disconnect the 4 connectors.
- CHECK TERMINAL VOLTAGE
See step 20
- DISCONNECT FC CONVERTER POWER OUTLET CABLE WARNING:
Wear insulated gloves.
NOTE:Do not allow foreign matter or water droplets to enter the inverter with converter assembly.

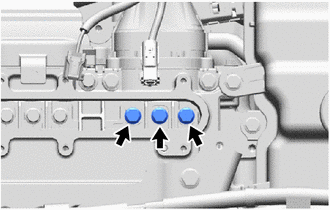

- Using an insulated tool, remove the 3 bolts.
- Using an insulated tool, remove the 2 bolts to disconnect the FC converter power outlet cable from the inverter with converter assembly.NOTE:
- Do not touch the rubber seal or terminal portion of the FC converter power outlet cable.
- Do not touch the rubber seal or terminal portion of the FC converter power outlet cable.
- Do not scratch or damage the FC converter assembly with the terminal portion of the FC converter power outlet cable.
- Insulate the terminal portion of the FC converter power outlet cable by wrapping it with insulating tape.
- To prevent foreign matter or water droplets from entering the inverter with converter assembly, temporarily install the inverter terminal cover to the inverter with converter assembly with the 11 bolts.NOTE:
- Check that the rubber seal is installed to the inverter terminal cover, and install the inverter terminal cover to the inverter with converter assembly.
- Do not touch the rubber seal of the inverter terminal cover.
- Do not install the inverter terminal cover while pressing down on the connector bracket.
- Securely connect the interlock connector.
*1 Interlock Connector *2 Connector Bracket - To prevent contamination by foreign matter or water droplets, cover the openings of the inverter with converter assembly with protective tape.
*a Protective Tape
- Using an insulated tool, remove the 3 bolts.
- REMOVE WINDSHIELD WIPER MOTOR AND LINK
Refer to REMOVAL [06/2015 - ]
- REMOVE NO. 2 HEATER AIR DUCT SPLASH SHIELD SEAL
Refer to PROCEDURE - Step 8
- REMOVE WATER GUARD PLATE LH
Refer to PROCEDURE - Step 9
- REMOVE COWL BODY MOUNTING REINFORCEMENT RH
Refer to PROCEDURE - Step 10
- REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 11
- SEPARATE FC CONVERTER POWER OUTLET CABLE WARNING:
Wear insulated gloves.
- REMOVE NO. 2 MOTOR UNDER COVER
Refer to PROCEDURE - Step 1
- REMOVE FRONT FLOOR COVER LH
Refer to PROCEDURE - Step 2
- REMOVE FRONT FLOOR COVER RH
Refer to PROCEDURE - Step 3

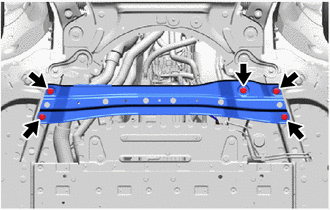

- REMOVE SUSPENSION MEMBER TO FRONT CROSSMEMBER BRACE SUB-ASSEMBLY
- REMOVE FC CONVERTER POWER OUTLET CABLE WARNING:
Wear insulated gloves.

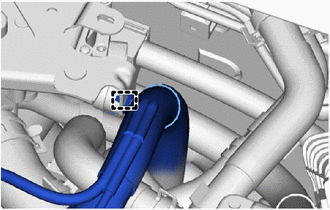

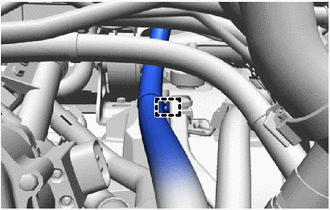

- Disengage the clamp to separate the FC converter power outlet cable from the FC converter power outlet bracket.

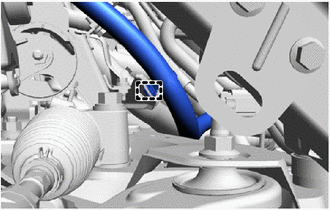

- Disengage the clamp to separate the FC converter power outlet cable from the FC stack cooling water outlet bracket.

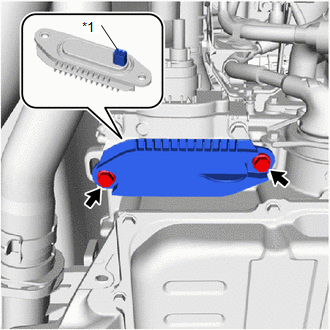

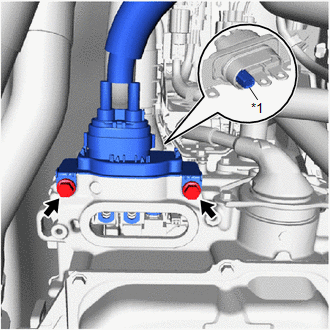

- Remove the 2 bolts and front FC converter service hole cover from the FC converter assembly.NOTE:
- The front FC converter service hole cover has an interlock connector, so pull it down straight.
- Make sure not to drop the gasket of the front FC converter service hole cover.

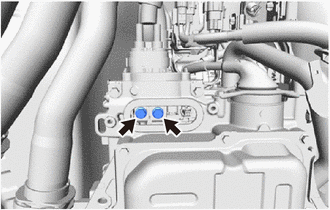

*1 Interlock Connector - Using an insulated tool, remove the 2 bolts.

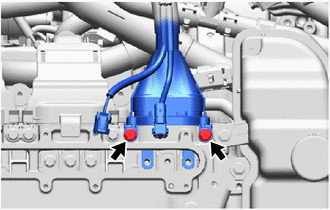

- Using an insulated tool, remove the 2 bolts and FC converter power outlet cable from the FC converter assembly.NOTE:
- The FC converter power outlet cable has an interlock connector, so pull it out straight.
- Do not touch the rubber seal or terminal portion of the FC converter power outlet cable.
- Do not apply any impacts to the terminal portion of the FC converter power outlet cable.
- Do not scratch or damage the FC converter assembly with the terminal portion of the FC converter power outlet cable.
- Insulate the terminal portion of the FC converter power outlet cable by wrapping it with insulating tape.

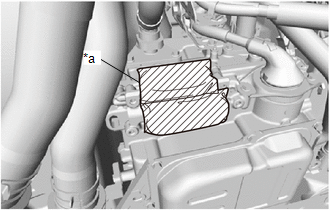

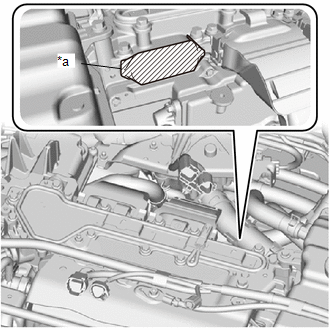

*1 Interlock Connector - To prevent contamination by foreign matter or water droplets, cover the openings of the FC converter assembly with protective tape.
*a Protective Tape
- Disengage the clamp to separate the FC converter power outlet cable from the FC converter power outlet bracket.
