Removal [06/2015 - 11/2018]: Procedure

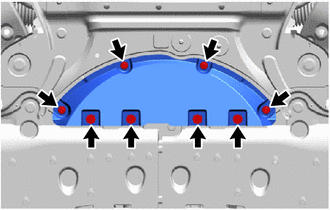

  1. REMOVE NO. 2 MOTOR UNDER COVER
    1. Remove the 4 screws, 4 clips and No. 2 motor under cover from the vehicle body.
      GTY566234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT FLOOR COVER LH

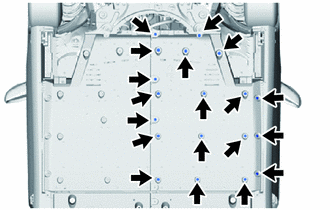

    1. Remove the 4 bolts and 15 clips.
      GTY548303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

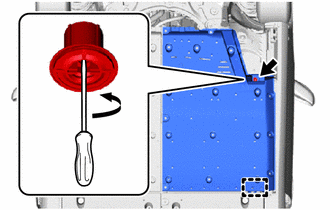

    2. Using a screwdriver, loosen the clip.
      GTY599672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      The clip cannot be removed from the front floor cover LH.

    3. Disengage the guide, and remove the front floor cover LH from the front floor center cover LH.
  3. REMOVE FRONT FLOOR COVER RH

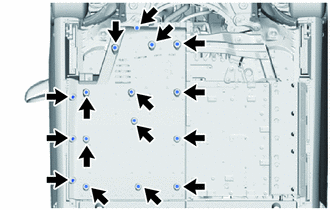

    1. Remove the 4 bolts and 12 clips.
      GTY599667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

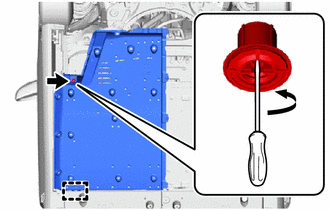

    2. Using a screwdriver, loosen the clip.
      GTY548333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      The clip cannot be removed from the front floor cover RH.

    3. Disengage the guide, and remove the front floor cover RH from the front floor center cover RH.
  4. REMOVE FRONT FLOOR CENTER COVER LH

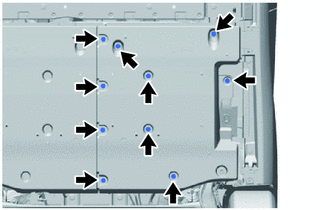

    1. Remove the 7 bolts and 3 screws.
      GTY548304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

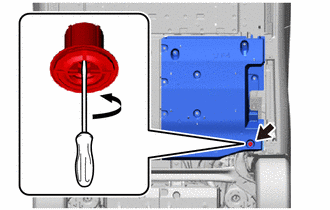

    2. Using a screwdriver, loosen the clip, and remove the front floor center cover LH from the vehicle body.
      GTY548328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      The clip cannot be removed from the front floor center cover LH.

  5. REMOVE FRONT FLOOR CENTER COVER RH

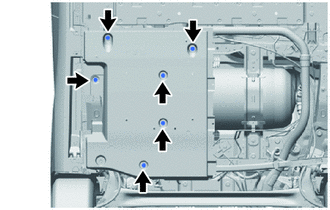

    1. Remove the 6 bolts.
      GTY548307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

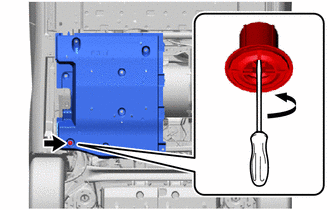

    2. Using a screwdriver, loosen the clip, and remove the front floor center cover RH from the vehicle body.
      GTY548335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      The clip cannot be removed from the front floor center cover RH.

  6. REMOVE NO. 2 FLOOR UNDER COVER

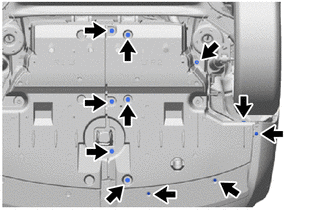

    1. Remove the 3 bolts, 5 screws, nut and 2 clips.
      GTY548305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

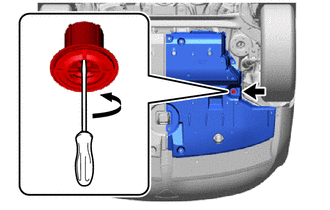

    2. Using a screwdriver, loosen the clip, and remove the No. 2 floor under cover from the vehicle body.
      GTY548330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      The clip cannot be removed from the No. 2 floor under cover.

  7. REMOVE NO. 1 FLOOR UNDER COVER

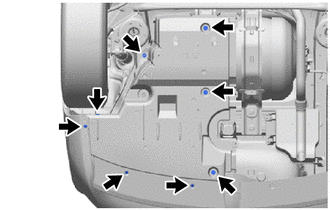

    1. Remove the 3 bolts, 2 screws, nut and 2 clips.
      GTY548306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

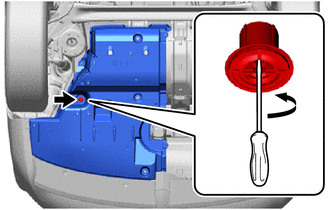

    2. Using a screwdriver, loosen the clip, and remove the No. 1 floor under cover from the vehicle body.
      GTY548332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      The clip cannot be removed from the No. 1 floor under cover.

  8. REMOVE FC EXHAUST TAIL PIPE ASSEMBLY

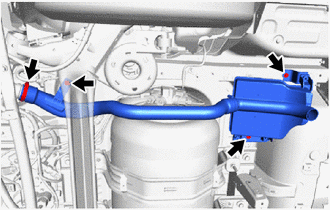

    1. Loosen the clamp.
      GTY566218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and FC exhaust tail pipe assembly from the No. 3 FC exhaust pipe and vehicle body.
      WARNING:
      • If the water remaining inside the FC exhaust tail pipe assembly is hot, do not touch the water directly.
      • Touching the water remaining inside the FC exhaust tail pipe assembly when it is hot could result in burns.
      GTY548314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • If the inner surface of the FC exhaust tail pipe assembly and the No. 3 FC exhaust pipe insertion portion are damaged or broken, replace them with new ones.
      • If the clamp is damaged or rusty, replace it with a new one.
    3. Remove the clamp from the FC exhaust tail pipe assembly.
      GTY561722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      This procedure is only performed when the clamp will be reused.

  9. REMOVE NO. 3 FC EXHAUST PIPE

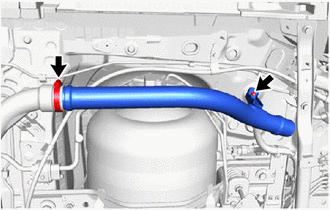

    1. Loosen the clamp.
      GTY566221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and No. 3 FC exhaust pipe from the No. 2 FC exhaust pipe and vehicle body.
      WARNING:
      • If the water remaining inside the No. 3 FC exhaust pipe is hot, do not touch the water directly.
      • Touching the water remaining inside the No. 3 FC exhaust pipe when it is hot could result in burns.
      GTY548312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • If the inner surface of the No. 3 FC exhaust pipe and the No. 2 FC exhaust pipe insertion portion are damaged or broken, replace them with new ones.
      • If the clamp is damaged or rusty, replace it with a new one.
  10. REMOVE NO. 2 FC EXHAUST PIPE

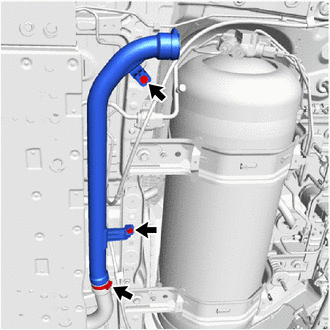

    1. Loosen the clamp.
      GTY603660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and No. 2 FC exhaust pipe from the No. 1 FC exhaust pipe and vehicle body.
      WARNING:
      • If the water remaining inside the No. 2 FC exhaust pipe is hot, do not touch the water directly.
      • Touching the water remaining inside the No. 2 FC exhaust pipe when it is hot could result in burns.
      GTY548311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • If the inner surface of the No. 2 FC exhaust pipe and the No. 1 FC exhaust pipe insertion portion are damaged or broken, replace them with new ones.
      • If the clamp is damaged or rusty, replace it with a new one.
    3. Remove the clamp from the No. 2 FC exhaust pipe.
      GTY561720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      This procedure is only performed when the clamp will be reused.

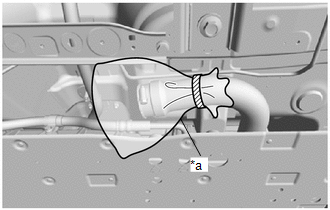

    4. To prevent contamination by foreign matter, cover the connecting portion of the No. 1 FC exhaust pipe with a plastic bag.
      GTY538820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Plastic Bag
  11. REMOVE FC STACK ASSEMBLY

    Refer to REMOVAL [06/2015 - 11/2018]

  12. REMOVE NO. 1 FC EXHAUST PIPE

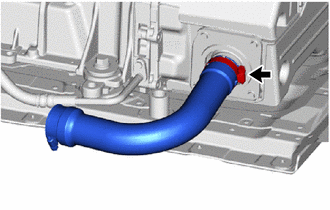

    1. Loosen the clamp and remove the No. 1 FC exhaust pipe from the FC stack assembly.
      GTY566220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WARNING:
      • If the water remaining inside the No. 1 FC exhaust pipe is hot, do not touch the water directly.
      • Touching the water remaining inside the No. 1 FC exhaust pipe when it is hot could result in burns.
      GTY548309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

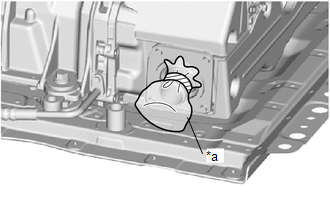

    2. To prevent contamination by foreign matter, cover the connecting portion of the FC stack assembly with a plastic bag.
      GTY608283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Plastic Bag
    3. Remove the clamp from the No. 1 FC exhaust pipe (No. 2 FC exhaust pipe side).

      HINT:

      This procedure is only performed when the clamp will be reused.

      GTY587064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
