Removal [06/2015 - ]: Procedure

  1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG

    Refer to PROCEDURE - Step 4 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 4 [11/2018 - ]

  2. REMOVE REAR DOOR ARMREST COVER

    Refer to PROCEDURE - Step 5 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 5 [11/2018 - ]

  3. REMOVE NO. 1 REAR DOOR STIFFENER CUSHION

    Refer to PROCEDURE - Step 6 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 6 [11/2018 - ]

  4. REMOVE COURTESY LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 1

  5. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 [06/2015 - 11/2018] , or refer to PROCEDURE - Step 8 [11/2018 - ]

  6. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

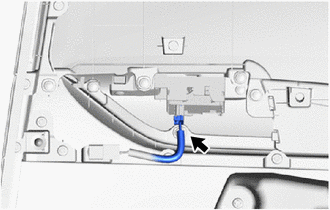

    1. Disconnect the connector.
      GTY548129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

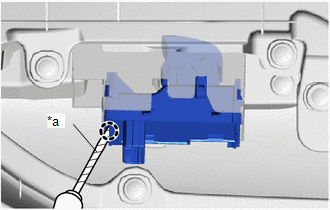

    2. Using a screwdriver with its tip wrapped in protective tape, disengage the claw.
      GTY578924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape

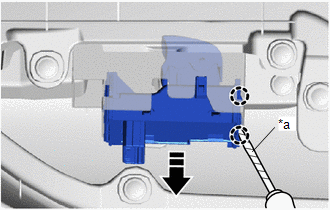

    3. Using a screwdriver with its tip wrapped in protective tape, disengage the claws to remove the rear power window regulator switch assembly as shown in the illustration.
      GTY570931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      Remove in this Direction
