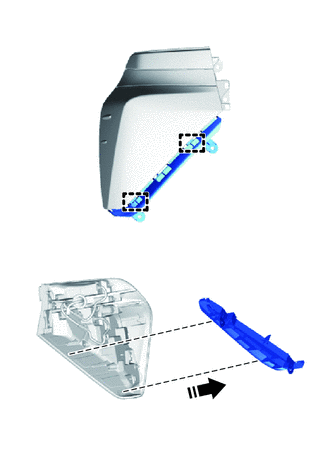

- REMOVE REAR FOG LIGHT ASSEMBLY
- Remove the 2 screws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the bracket A and bracket B.
- As shown in the illustration, disengage the claws at the bottom of the rear fog light assembly to remove the rear fog light assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
Remove in this Direction |
- REMOVE NO. 3 LUGGAGE ROOM WIRE
- Disconnect the 4 connectors.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the clamps to remove the No. 3 luggage room wire.
- REMOVE NO. 2 ULTRASONIC SENSOR
Refer to PROCEDURE - Step 2
- REMOVE NO. 2 ULTRASONIC SENSOR RETAINER
Refer to PROCEDURE - Step 3

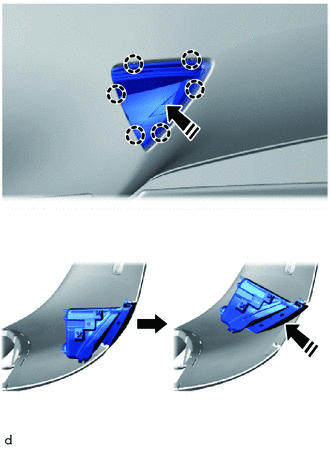

- REMOVE REAR SIDE SPOILER SUB-ASSEMBLY LH
- Remove the 3 screws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 6 outside moulding retainers.
- Disengage the claws to remove the rear side spoiler sub-assembly LH as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Remove in this Direction |
- REMOVE REAR SIDE SPOILER SUB-ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.

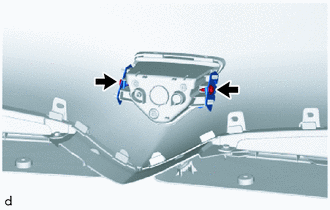

- REMOVE CENTER REAR BUMPER BRACKET
- Remove the 4 outside moulding retainers.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the center rear bumper bracket.

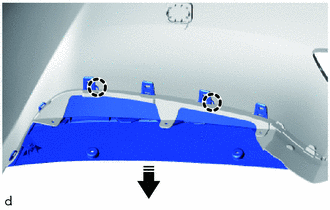

- REMOVE REAR BUMPER PLATE LH
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Remove in this Direction |
- Disengage the claws as shown in the illustration.
- Disengage the hook to remove the rear bumper plate LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER PLATE RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR BUMPER ENERGY ABSORBER
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
Double-Sided Tape |
|
Remove in this Direction |
- Separate the 2 double-sided tapes.
- Disengage the guides to remove the rear bumper energy absorber as shown in the illustration.
- REMOVE REAR BUMPER PROTECTOR
- Remove the 2 screws.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Using a clip remover, disengage the claw to remove the rear bumper protector.
HINT:
Use the same procedure for the RH side.

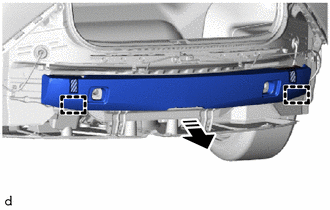

- REMOVE REAR BUMPER REINFORCEMENT SUB-ASSEMBLY
- Remove the 6 bolts and rear bumper reinforcement sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER ARM SUB-ASSEMBLY LH
- Remove the 3 bolts and rear bumper arm sub-assembly LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE REAR BUMPER ARM SUB-ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.

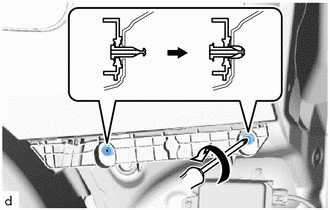

- REMOVE REAR BUMPER SIDE RETAINER LH
- Using a screwdriver, disengage the 2 clips as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
Turn |
HINT:
The clip cannot be completely removed.

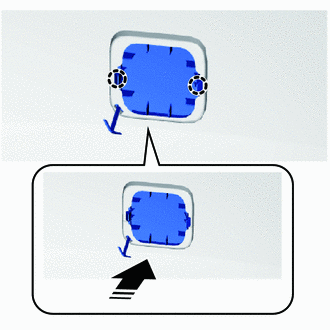

- Using a clip remover, disengage the claws to remove the rear bumper side retainer LH as shown in the illustration.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Remove in this Direction |
- REMOVE REAR BUMPER SIDE RETAINER RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR COMBINATION LIGHT COVER LH
Refer to PROCEDURE - Step 2
- REMOVE REAR COMBINATION LIGHT COVER RH
HINT:
Use the same procedure as for the LH side.
- REMOVE REAR COMBINATION LIGHT ASSEMBLY LH
Refer to PROCEDURE - Step 3
- REMOVE REAR COMBINATION LIGHT ASSEMBLY RH
HINT:
Use the same procedure as for the LH side.

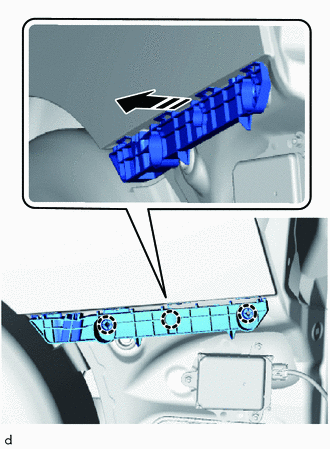

- REMOVE REAR BUMPER SIDE SUPPORT LH
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Remove in this Direction |
- Disengage the guides to remove the rear bumper side support LH as shown in the illustration.
- REMOVE REAR BUMPER SIDE SUPPORT RH
HINT:
Use the same procedure as for the LH side.
