Removal [12/2013 - 11/2016]: Procedure

Refer to PROCEDURE - Step 1

Refer to REMOVAL [12/2013 - 11/2016]

for 1AR-FE:

Refer to PROCEDURE - Step 25

for 2GR-FE:

Refer to PROCEDURE - Step 26

for 1AR-FE:

Refer to PROCEDURE - Step 31

for 2GR-FE:

Refer to PROCEDURE - Step 30

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 12

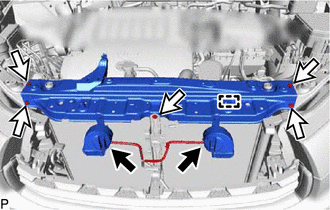

1. Disconnect the 2 connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the clamp.
3. Remove the 5 bolts and upper radiator support sub-assembly.

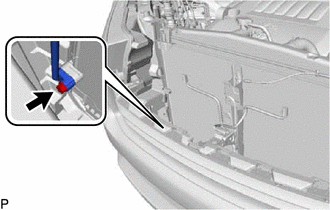

1. Remove the bolt and disconnect the discharge hose sub-assembly from the cooler condenser assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the O-ring from the discharge hose sub-assembly.
   NOTE:

   Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

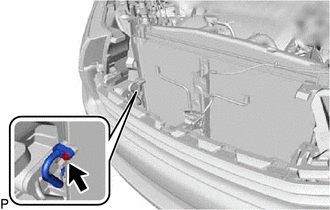

1. Remove the bolt and disconnect the air conditioner tube and accessory assembly from the cooler condenser assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the O-ring from the air conditioner tube and accessory assembly.
   NOTE:

   Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

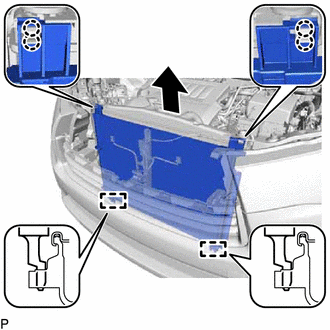

1. Disengage the 4 claws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the 2 guides and remove the cooler condenser assembly as shown in the illustration.
   NOTE:

   Do not damage the condenser or radiator when removing the cooler condenser assembly.
