Removal [12/2013 - 11/2016]: Procedure

  1. REMOVE RADIATOR GRILLE

    Refer to REMOVAL [12/2013 - 11/2016]

  2. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
    1. Disconnect the connector.
      GTY446576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

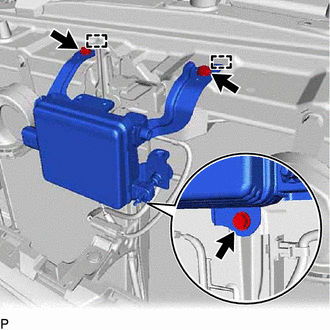

    2. Remove the 3 bolts.
      GTY446577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 guides to remove the millimeter wave radar sensor assembly.
