Removal [12/2013 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE RADIATOR SIDE DEFLECTOR SEAL LH

    Refer to PROCEDURE - Step 1 , or refer to PROCEDURE - Step 1

  2. REMOVE RADIATOR SIDE SEAL RH

    Refer to PROCEDURE - Step 2 , or refer to PROCEDURE - Step 2

  3. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 3 , or refer to PROCEDURE - Step 3

  4. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 25 , or refer to PROCEDURE - Step 25

  5. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 3

  6. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 27 , or refer to PROCEDURE - Step 27

  7. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 28 , or refer to PROCEDURE - Step 28

  8. REMOVE AIR CONDITIONING UNIT ASSEMBLY

    Refer to REMOVAL [12/2013 - 11/2016] , or refer to REMOVAL [11/2016 - ]

  9. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Move the shift lever to N.
    2. Separate the end of the transmission control cable assembly from the transmission floor shift assembly.
      GTY448162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

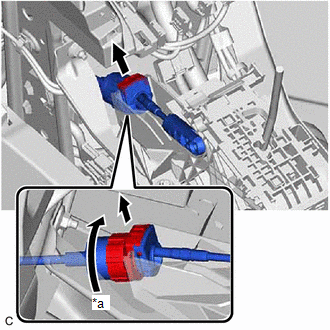

    3. Rotate the nut counterclockwise approximately 180° and, while holding the nut in that position, separate the transmission control cable assembly from the transmission floor shift assembly.
      GTY436798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Counterclockwise

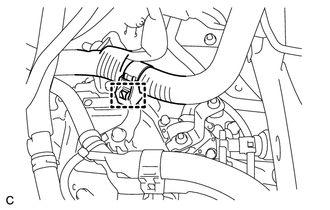

    4. Disengage the wire harness clamp.
      GTY431161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

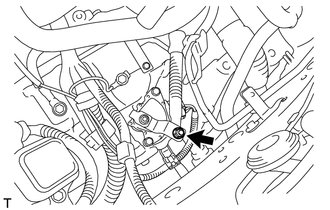

    5. Remove the nut from the transmission control shaft lever.
      GTY423470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

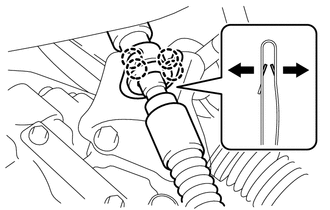

    6. Using a screwdriver, disengage the 4 claws and disconnect the transmission control cable assembly with the clip from the No. 1 transmission control cable bracket.
      GTY449978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Using a screwdriver, disengage the 2 claws and remove the clip from the transmission control cable assembly.
      GTY444212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Turn back the dash panel insulator.
      GTY438334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Remove the 3 bolts and pull out the transmission control cable assembly from the cabin.
