Removal [06/2017 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE FRONT FLOOR COVER LH

    See step  3

  2. REMOVE FRONT FLOOR COVER RH

    See step  4

  3. REMOVE BODY MOUNTING PLATE

    See step  8

  4. REMOVE NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side)

    See step  9

  5. REMOVE FRONT EXHAUST PIPE ASSEMBLY
    1. Disconnect the 2 heated oxygen sensor connectors.
      GTY766185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 wire harness clamps.
    3. Remove the 4 bolts, 4 nuts and disconnect the front exhaust pipe assembly (TWC: Rear Catalyst).
      GTY766184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the front exhaust pipe assembly (TWC: Rear Catalyst) from the exhaust pipe support.
    5. Remove the 3 gaskets from the front exhaust pipe assembly (TWC: Rear Catalyst).
  6. REMOVE AIR FUEL RATIO SENSOR (for Bank 1)

    Refer to PROCEDURE - Step 3

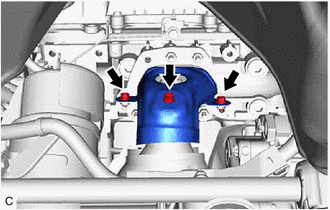

  7. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    1. Remove the 3 bolts and No. 1 exhaust manifold heat insulator from the exhaust manifold assembly RH (TWC: Front Catalyst).
      GTY766183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

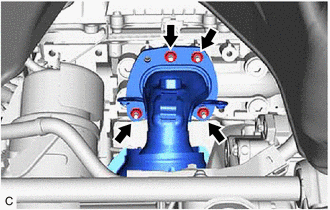

  8. REMOVE EXHAUST MANIFOLD ASSEMBLY RH (TWC: Front Catalyst)
    1. Using a 12 mm deep socket wrench, remove the 4 nuts and exhaust manifold assembly RH (TWC: Front Catalyst) from the cylinder head sub-assembly RH.
      GTY766182Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

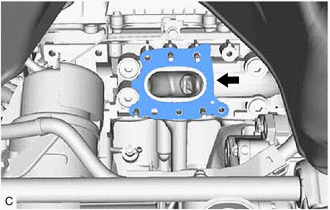

  9. REMOVE EXHAUST MANIFOLD TO HEAD GASKET (for Bank 1)
    1. Remove the exhaust manifold to head gasket (for Bank 1) from the cylinder head sub-assembly RH.
      GTY766174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 7 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 7 [08/2018 - 10/2020] , or refer to PROCEDURE - Step 7 [10/2020 - 08/2022] , or refer to PROCEDURE - Step 7 [08/2022 - 08/2023] , or refer to PROCEDURE - Step 7 [08/2023 - ]

  11. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 8 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 8 [08/2018 - 10/2020] , or refer to PROCEDURE - Step 8 [10/2020 - 08/2022] , or refer to PROCEDURE - Step 8 [08/2022 - 08/2023] , or refer to PROCEDURE - Step 8 [08/2023 - ]

  12. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 9 [08/2018 - 10/2020] , or refer to PROCEDURE - Step 9 [10/2020 - 08/2022] , or refer to PROCEDURE - Step 9 [08/2022 - 08/2023] , or refer to PROCEDURE - Step 9 [08/2023 - ]

  13. REMOVE REAR ENGINE UNDER COVER RH

    Refer to PROCEDURE - Step 11 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 11 [08/2018 - 10/2020] , or refer to PROCEDURE - Step 11 [10/2020 - 08/2022] , or refer to PROCEDURE - Step 11 [08/2022 - 08/2023] , or refer to PROCEDURE - Step 11 [08/2023 - ]

  14. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 19 [08/2018 - 10/2020] , or refer to PROCEDURE - Step 19 [10/2020 - 08/2022] , or refer to PROCEDURE - Step 19 [08/2022 - 08/2023] , or refer to PROCEDURE - Step 19 [08/2023 - ]

  15. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [06/2017 - 10/2020] , or refer to PROCEDURE - Step 1 [10/2020 - ]

  16. REMOVE AIR FUEL RATIO SENSOR (for Bank 2)

    Refer to PROCEDURE - Step 2

  17. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE

    Refer to PROCEDURE - Step 16 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 16 [08/2018 - 10/2020] , or refer to PROCEDURE - Step 16 [10/2020 - 08/2022] , or refer to PROCEDURE - Step 16 [08/2022 - ]

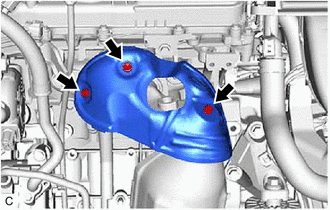

  18. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
    1. Remove the 3 bolts and No. 2 exhaust manifold heat insulator from the exhaust manifold assembly LH (TWC: Front Catalyst).
      GTY766173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE NO. 2 MANIFOLD STAY
    1. Remove the bolt, nut and No. 2 manifold stay from the exhaust manifold assembly LH (TWC: Front Catalyst) and cylinder block sub-assembly.
      GTY744295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt
      Nut

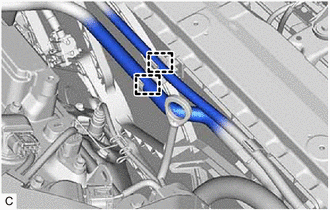

  20. DISCONNECT NO. 5 WATER BY-PASS HOSE
    1. Disengage the 2 clamps to disconnect the No. 5 water by-pass hose and No. 6 water by-pass hose from the hose clamp.
      GTY765976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE EXHAUST MANIFOLD ASSEMBLY LH (TWC: Front Catalyst)
    1. Using a 12 mm deep socket wrench, remove the 4 nuts and exhaust manifold assembly LH (TWC: Front Catalyst).
      GTY766171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE EXHAUST MANIFOLD TO HEAD GASKET (for Bank 2)
    1. Remove the exhaust manifold to head gasket (for Bank 2) from the cylinder head sub-assembly.
      GTY774166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE STUD BOLT

    HINT:

    If a stud bolt is deformed or its threads are damaged, replace it.

    1. Using an E8 "TORX" socket wrench, remove the 2 stud bolts from the exhaust manifold assembly LH (TWC: Front Catalyst).
      GTY766170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
