Removal [10/2020 - 08/2022]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE KNOCK CONTROL SENSOR

    Refer to REMOVAL [10/2020 - ]

  2. REMOVE SENSOR WIRE

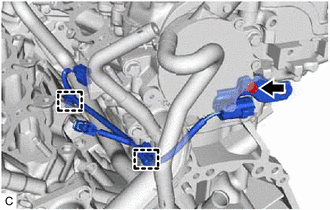

    1. Disengage the 2 clamps and remove the bolt and sensor wire.
      GTY665987Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  4. REMOVE VACUUM PUMP ASSEMBLY

    Refer to PROCEDURE - Step 5

  5. REMOVE NO. 3 WATER BY-PASS HOSE
    1. Slide the clip and remove the No. 3 water by-pass hose from the water inlet pipe.
      GTY766407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE NO. 2 WATER BY-PASS HOSE
    1. Slide the clip and remove the No. 2 water by-pass hose from the water outlet.
      GTY766406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE VENTILATION HOSE
    1. GTY665986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Slide the clip and remove the ventilation hose from the PCV valve (ventilation valve sub-assembly).

  8. REMOVE NO. 2 VENTILATION HOSE
    1. Slide the clip and remove the No. 2 ventilation hose from the cylinder head cover sub-assembly.
      GTY671738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE V-RIBBED BELT

    Refer to PROCEDURE - Step 3

  10. REMOVE GENERATOR ASSEMBLY

    Refer to PROCEDURE - Step 6

  11. REMOVE COMPRESSOR ASSEMBLY WITH MAGNETIC CLUTCH

    Refer to PROCEDURE - Step 6

  12. REMOVE NO. 1 COMPRESSOR MOUNTING BRACKET
    1. GTY766102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 bolts and No. 1 compressor mounting bracket from the cylinder block sub-assembly.

  13. REMOVE NO. 2 IDLER PULLEY SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  14. REMOVE V-RIBBED BELT TENSIONER ASSEMBLY

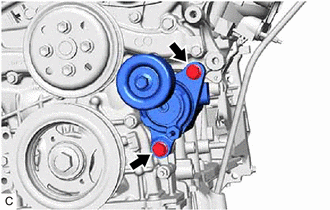

    1. Remove the 2 bolts and V-ribbed belt tensioner assembly.
      GTY766546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE WATER PUMP PULLEY

    Refer to PROCEDURE - Step 4

  16. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE
    1. Remove the engine oil level dipstick from the engine oil level dipstick guide.

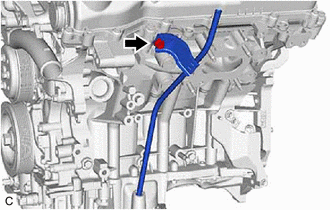

    2. Remove the bolt and engine oil level dipstick guide from the camshaft housing sub-assembly LH and oil pan sub-assembly.
      GTY766101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the engine oil level dipstick guide O-ring from the engine oil level dipstick guide.
      GTY766100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE DRIVE SHAFT BEARING BRACKET
    1. Remove the 3 bolts and drive shaft bearing bracket from the cylinder block sub-assembly.
      GTY756938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE WIRE HARNESS CLAMP BRACKET

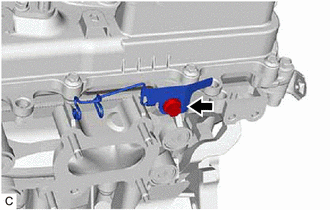

    1. Remove the bolt and wire harness clamp bracket from the camshaft housing sub-assembly LH.
      GTY766053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and wire harness clamp bracket from the camshaft housing sub-assembly.
      GTY766055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE WATER FILLER BRACKET
    1. Remove the 2 bolts and water filler bracket from the camshaft housing sub-assembly LH.
      GTY766054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE ENGINE COVER BRACKET
    1. Remove the bolt and engine cover bracket from the cylinder head cover sub-assembly LH.
      GTY766105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
