Removal [06/2017 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 19 [06/2017 - 08/2018]
, or refer to PROCEDURE - Step 19 [08/2018 - 10/2020]
, or refer to PROCEDURE - Step 19 [10/2020 - 08/2022]
, or refer to PROCEDURE - Step 19 [08/2022 - 08/2023]
, or refer to PROCEDURE - Step 19 [08/2023 - ]
- REMOVE AIR FUEL RATIO SENSOR (for Bank 2)

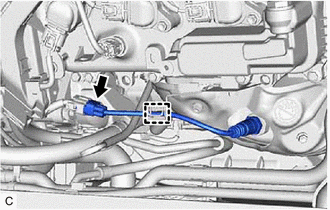

- Disengage the wire harness clamp.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the air fuel ratio sensor connector.

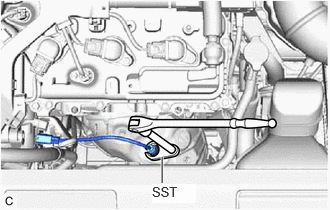

- Using SST, remove the air fuel ratio sensor from the exhaust manifold assembly LH (TWC: Front Catalyst).
NOTE:
If the air fuel ratio sensor has been struck or dropped, replace it.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE AIR FUEL RATIO SENSOR (for Bank 1)

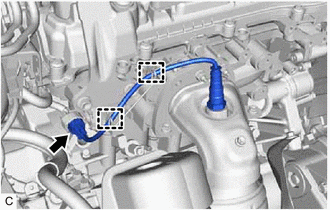

- Disconnect the air fuel ratio sensor connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the 2 wire harness clamps.

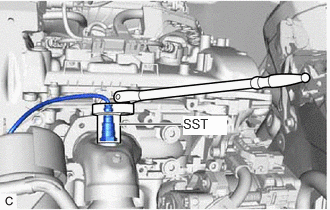

- Using SST, remove the air fuel ratio sensor from the exhaust manifold assembly RH (TWC: Front Catalyst).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
If the air fuel ratio sensor has been struck or dropped, replace it.
