Removal [06/2017 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 19 [06/2017 - 08/2018] , or refer to PROCEDURE - Step 19 [08/2018 - 10/2020] , or refer to PROCEDURE - Step 19 [10/2020 - 08/2022] , or refer to PROCEDURE - Step 19 [08/2022 - 08/2023] , or refer to PROCEDURE - Step 19 [08/2023 - ]

  2. REMOVE IGNITION COIL ASSEMBLY
    1. Disconnect the 3 ignition coil assembly connectors.

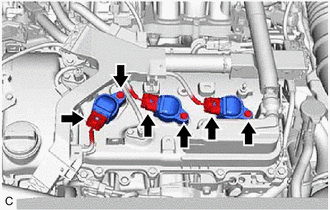

      GTY763567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and 3 ignition coil assemblies from the cylinder head cover sub-assembly LH.
      NOTE:

      If an ignition coil assembly has been struck or dropped, replace it.

      HINT:

      Arrange the removed parts in the correct order.

    3. Disengage the 4 clamps to separate the vacuum hose from the intake air surge tank assembly.

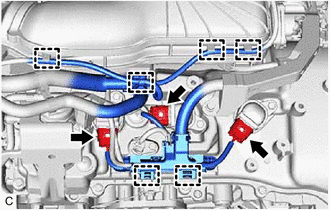

      GTY763565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 2 wire harness clamps.
    5. Disconnect the 3 ignition coil assembly connectors.
    6. Remove the 3 bolts and 3 ignition coil assemblies from the cylinder head cover sub-assembly.

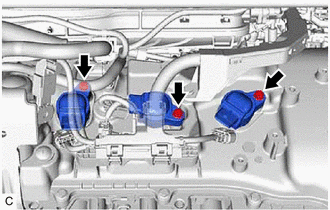

      GTY763572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If an ignition coil assembly has been struck or dropped, replace it.

      HINT:

      Arrange the removed parts in the correct order.

  3. REMOVE SPARK PLUG

    Refer to PROCEDURE - Step 3
