Installation [03/2020 - ]: Procedure

  1. INSTALL NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
    1. Type A:
      1. Install the No. 2 exhaust manifold heat insulator to the exhaust manifold (TWC: Front Catalyst) with the 6 bolts.

        Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

    2. Type B:
      1. Install the No. 2 exhaust manifold heat insulator to the exhaust manifold (TWC: Front Catalyst) with the 3 bolts.

        Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)

  2. INSTALL EXHAUST MANIFOLD (TWC: Front Catalyst)
    1. Install a new exhaust manifold to head gasket to the cylinder head sub-assembly.
    2. Temporarily install the exhaust manifold (TWC: Front Catalyst), No. 1 upper front floor heat insulator and No. 1 exhaust manifold heat insulator.

      HINT:

      At this time, do not install the parts with bolts or nuts.

    3. GTY764362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Using a 12 mm deep socket wrench, temporarily install the exhaust manifold (TWC: Front Catalyst) to the cylinder head sub-assembly with 7 new nuts.

    4. Using the 12 mm deep socket wrench, tighten the 7 nuts in the order shown in the illustration.

      Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

  3. INSTALL MANIFOLD STAY
    1. Temporarily install the manifold stay to the exhaust manifold (TWC: Front Catalyst) and cylinder block sub-assembly with the bolt and nut.
      GTY745060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Tighten the bolt and nut in the order shown in the illustration.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

  4. INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    1. Type A:
      1. Using a 10 mm union nut wrench, install the No. 1 exhaust manifold heat insulator to the exhaust manifold (TWC: Front Catalyst) with the 5 bolts.

        Specified tightening torque

        Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

        HINT:

        • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

          Refer to PRECAUTION [03/2020 - ]

        • When using a 10 mm union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)): 8.8 N*m (90 kgf*cm, 78 in.*lbf)
        GTY768861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Torque Wrench Fulcrum Length
    2. Type B:
      1. Using a 10 mm union nut wrench, install the No. 1 exhaust manifold heat insulator to the exhaust manifold (TWC: Front Catalyst) with the 3 bolts.

        Specified tightening torque

        Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  5. INSTALL NO. 1 UPPER FRONT FLOOR HEAT INSULATOR
    1. For 2WD:
      GTY774679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length
      1. Using a 10 mm union nut wrench, install the No. 1 upper front floor heat insulator to the vehicle body with the 2 nuts.

        Specified tightening torque

        Torque: 4.9 N*m (50 kgf*cm, 43 in.*lbf)

        HINT:

        • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

          Refer to PRECAUTION [03/2020 - ]

        • When using a 10 mm union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)): 4.3 N*m (44 kgf*cm, 38 in.*lbf)

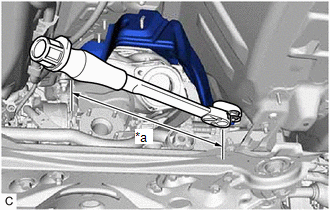

    2. GTY996161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length

      For AWD:

      1. Using a 10 mm union nut wrench, install the No. 1 upper front floor heat insulator to the vehicle body with the 3 nuts.

        Specified tightening torque

        Torque: 4.9 N*m (50 kgf*cm, 43 in.*lbf)

        HINT:

        • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

          Refer to PRECAUTION [03/2020 - ]

        • When using a 10 mm union nut wrench (fulcrum length of 22 mm (0.866 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)): 4.3 N*m (44 kgf*cm, 38 in.*lbf)
  6. INSTALL WIRE HARNESS CLAMP BRACKET
    1. Install the wire harness clamp bracket with the bolt.

      Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)

  7. INSTALL AIR FUEL RATIO SENSOR (for Sensor 1)

    Refer to INSTALLATION [03/2017 - ]

  8. INSTALL FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5 [09/2019 - 10/2020] , or refer to PROCEDURE - Step 5 [10/2020 - ]

  9. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to INSTALLATION [03/2017 - ]

  10. INSTALL FRONT LOWER NO. 1 FLOOR HEAT INSULATOR

    2WD: Refer to PROCEDURE - Step 4

    AWD: Refer to PROCEDURE - Step 4

  11. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY (for AWD)

    Refer to INSTALLATION [03/2020 - ]

  12. INSTALL FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
    1. Install 2 new gaskets to the front exhaust pipe assembly (TWC: Rear Catalyst).
    2. Connect the front exhaust pipe assembly (TWC: Rear Catalyst) to the 2 exhaust pipe supports.
    3. Install the front exhaust pipe assembly (TWC: Rear Catalyst) to the exhaust manifold (TWC: Front Catalyst) and center exhaust pipe assembly with 2 new bolts and 2 new nuts.

      Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

    4. For 2WD:
      1. Connect the air fuel ratio sensor (for sensor 2) connector.
      2. Engage the wire harness clamp.
    5. For AWD:
      1. Connect the air fuel ratio sensor (for sensor 2) connector.
      2. Engage the 2 wire harness clamps.
  13. INSTALL CENTER FLOOR CROSSMEMBER BRACE

    See step  7

  14. INSTALL FRONT CENTER FLOOR BRACE

    See step  8

  15. INSTALL FRONT FLOOR COVER LH

    See step  9

  16. INSTALL FRONT FLOOR COVER RH

    See step  10

  17. INSPECT FOR EXHAUST GAS LEAK

    See step  11

  18. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 72 [03/2020 - 10/2020] , or refer to PROCEDURE - Step 72 [10/2020 - ]

  19. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 73 [03/2020 - 10/2020] , or refer to PROCEDURE - Step 73 [10/2020 - ]

  20. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 74 [03/2020 - 10/2020] , or refer to PROCEDURE - Step 74 [10/2020 - ]

  21. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 75 [03/2020 - 10/2020] , or refer to PROCEDURE - Step 75 [10/2020 - ]
