Removal [06/2017 - 10/2020]: Procedure

  1. REMOVE REAR WHEEL

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 2 FLOOR UNDER COVER (for LH Side)

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 1 FLOOR UNDER COVER (for RH Side)

    Refer to PROCEDURE - Step 3

  4. SEPARATE NO. 2 PARKING BRAKE WIRE ASSEMBLY
    1. Disconnect the No. 2 parking brake wire assembly connector from the parking brake actuator assembly.
      GTY764802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Remove any dirt or foreign matter on and around the No. 2 parking brake wire assembly connector before performing this step.
      • Do not allow water, oil or dirt to enter the No. 2 parking brake wire assembly connector.

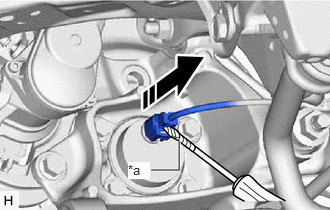

    2. Using a screwdriver with its tip wrapped with protective tape, disconnect the No. 2 parking brake wire assembly connector from the rear axle hub and bearing assembly.
      GTY771197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      Be careful not to damage the rear axle hub and bearing assembly or connector cover.

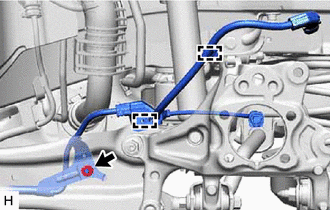

    3. Remove the nut, disengage the 2 clamps and separate the No. 2 parking brake wire assembly from the rear flexible hose bracket and rear trailing arm assembly.
      GTY744070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. SEPARATE REAR FLEXIBLE HOSE

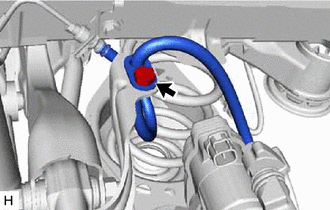

    1. Remove the bolt and separate the rear flexible hose from the rear flexible hose bracket.
      GTY747621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY

    Refer to PROCEDURE - Step 3

  7. REMOVE REAR DISC

    Refer to PROCEDURE - Step 15

  8. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY

    Refer to PROCEDURE - Step 5

  9. REMOVE REAR FLEXIBLE HOSE BRACKET

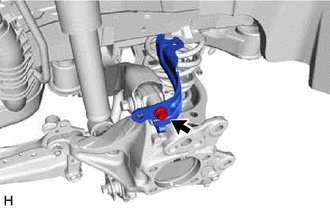

    1. Remove the bolt and rear flexible hose bracket from the rear axle carrier sub-assembly.
      GTY769320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR STABILIZER LINK ASSEMBLY

    Refer to PROCEDURE - Step 5

  11. REMOVE REAR COIL SPRING

    Refer to PROCEDURE - Step 5 [06/2017 - 03/2020] , or refer to PROCEDURE - Step 5 [03/2020 - 10/2020]

  12. REMOVE REAR LOWER COIL SPRING INSULATOR

    Refer to PROCEDURE - Step 7 [06/2017 - 03/2020] , or refer to PROCEDURE - Step 7 [03/2020 - 10/2020]

  13. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY

    Refer to PROCEDURE - Step 8 [06/2017 - 03/2020] , or refer to PROCEDURE - Step 8 [03/2020 - 10/2020]

  14. REMOVE REAR AXLE CARRIER SUB-ASSEMBLY
    1. Loosen the 2 bolts of the rear trailing arm assembly.
      GTY762887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the nut of the rear shock absorber assembly.
      NOTE:

      Hold the rear axle carrier pin while rotating the nut.

      GTY745625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Axle Carrier Pin
    3. Using a jack and a wooden block, support the rear axle carrier sub-assembly.
      NOTE:
      • When jacking up the rear axle carrier sub-assembly, be sure to jack it up slowly.
      • Make sure to perform this operation with the vehicle kept as low as possible.
      GTY747033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Wooden Block
      *b Jack
    4. Loosen the bolt (A).
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

      GTY749151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 bolts and separate the rear trailing arm assembly from the rear axle carrier sub-assembly.
    6. Remove the nut and plate washer, and separate the rear shock absorber assembly from the rear axle carrier sub-assembly.
      NOTE:

      Hold the rear axle carrier pin while rotating the nut.

    7. Remove the bolt (A), nut and rear axle carrier sub-assembly from the rear upper control arm assembly.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
