Removal [11/2016 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 22
- REMOVE NO. 1 ENGINE COVER
Refer to PROCEDURE - Step 2
- DISCONNECT VENTILATION HOSE

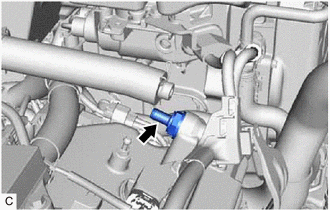

- Slide the clip and disconnect the ventilation hose from the PCV valve (ventilation valve sub-assembly).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
- Using a 22 mm deep socket wrench, remove the PCV valve (ventilation valve sub-assembly) from the cylinder head cover sub-assembly LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
