Removal [11/2016 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE V-BANK COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 22
- REMOVE NO. 1 ENGINE COVER

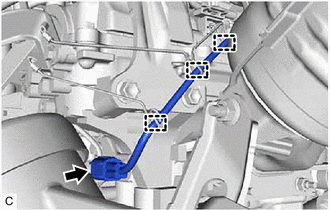

- Disengage the clamp to disconnect the No. 4 engine wire from the wire harness bracket.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

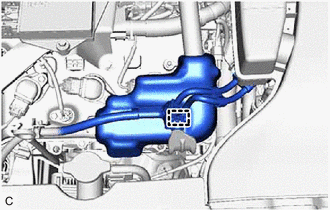

- Remove the No. 1 engine cover from the cylinder head cover sub-assembly LH.
- REMOVE AIR FUEL RATIO SENSOR (for Bank 2)
- Disconnect the air fuel ratio sensor connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the 2 wire harness clamps.

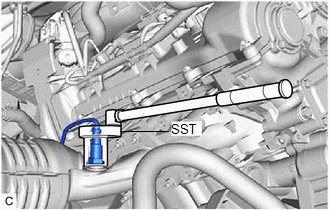

- Using SST, remove the air fuel ratio sensor from the exhaust manifold assembly LH (TWC: Front Catalyst).
NOTE:
If the air fuel ratio sensor has been struck or dropped, replace it.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE NO. 1 EGR PIPE
Refer to REMOVAL [11/2016 - ]
- REMOVE NO. 2 ENGINE UNDER COVER
Refer to PROCEDURE - Step 12
- REMOVE AIR FUEL RATIO SENSOR (for Bank 1)

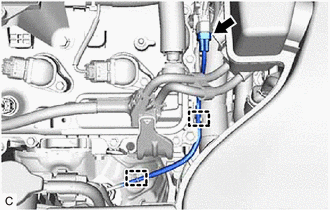

- Disconnect the air fuel ratio sensor connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the 3 wire harness clamps.

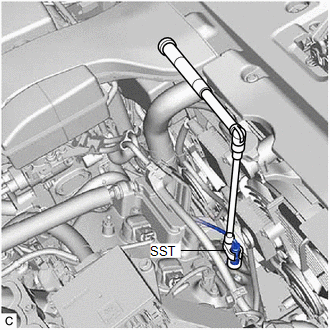

- Using SST, remove the air fuel ratio sensor from the exhaust manifold (TWC: Front Catalyst).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
If the air fuel ratio sensor has been struck or dropped, replace it.
