Removal [11/2016 - ]: Procedure
WARNING: This page is about a different variant/trim than selected.
- REMOVE FRONT FLOOR COVER LH
Refer to PROCEDURE - Step 3
- REMOVE NO. 2 ENGINE UNDER COVER
Refer to PROCEDURE - Step 12
- REMOVE HEATED OXYGEN SENSOR (for Bank 1)
- Disconnect the heated oxygen sensor connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

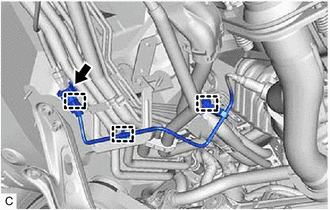

- Disengage the 3 wire harness clamps.

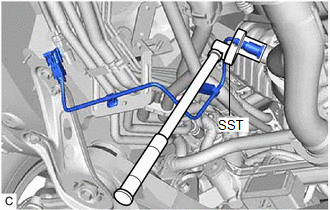

- Using SST, remove the heated oxygen sensor from the front No. 3 exhaust pipe sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
If the heated oxygen sensor has been struck or dropped, replace it.
- REMOVE NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 11
- REMOVE FRONT NO. 3 EXHAUST PIPE SUB-ASSEMBLY
Refer to PROCEDURE - Step 15
- REMOVE FRONT EXHAUST PIPE ASSEMBLY
Refer to PROCEDURE - Step 22
- REMOVE HEATED OXYGEN SENSOR (for Bank 2)
- Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
If the heated oxygen sensor has been struck or dropped, replace it.
