Installation [12/2013 - 11/2016]: Procedure

WARNING: This page is about a different car, the 2016 Toyota Highlander, 2015 Toyota Highlander, and 2014 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL NO. 3 CAMSHAFT
    1. Apply a light coat of engine oil to the No. 3 camshaft journals and camshaft housing sub-assembly LH.
    2. Install the No. 3 camshaft to the camshaft housing sub-assembly LH.

      HINT:

      Perform "Inspection After Repair" after replacing the No. 3 camshaft.

      Refer to INITIALIZATION [12/2013 - 11/2016]

  2. INSTALL NO. 4 CAMSHAFT
    1. Apply a light coat of engine oil to the No. 4 camshaft journals and camshaft housing sub-assembly LH.
    2. Install the No. 4 camshaft to the camshaft housing sub-assembly LH.

      HINT:

      Perform "Inspection After Repair" after replacing the No. 4 camshaft.

      Refer to INITIALIZATION [12/2013 - 11/2016]

  3. INSTALL CAMSHAFT BEARING CAP (for Bank 2)
    1. Apply engine oil to the 5 camshaft bearing caps.

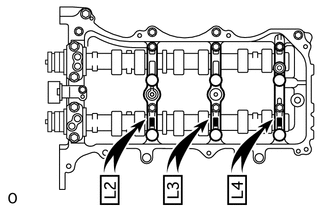

    2. Confirm the marks and numbers on the camshaft bearing caps and place them in each proper position and direction.
      GTY146842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

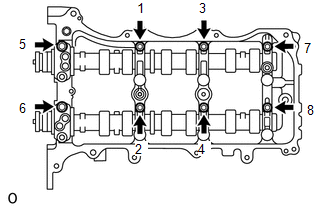

    3. Temporarily tighten the 8 bolts in the order shown in the illustration.
      Fig 1: Tightening Sequence Of Camshaft Bearing Cap Bolts (For Bank 2)
      GTY455608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  4. INSTALL CAMSHAFT HOUSING SUB-ASSEMBLY LH

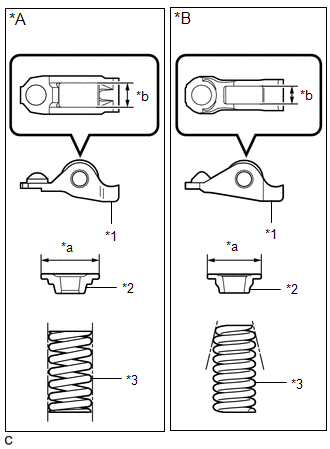

    GTY479604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *A Type A
    *B Type B
    *1 No. 1 Valve Rocker Arm Sub-assembly
    *2 Valve Spring Retainer
    *3 Inner Compression Spring
    *a Valve Spring Retainer Diameter
    *b No. 1 Valve Rocker Arm Sub-assembly Roller Width

    HINT:

    Type A and Type B can be distinguished by the shape of the compression spring.

    Type No. 1 Valve Rocker Arm Sub-assembly Roller Width Valve Spring Retainer Diameter Inner Compression Spring Shape
    A 10.7 mm (0.421 in.) 23.4 mm (0.921 in.) Straight
    B 8.0 mm (0.315 in.) 18.9 mm (0.744 in.) Taper
    1. Make sure that the No. 1 valve rocker arm sub-assemblies are installed as shown in the illustration.
      GTY472310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Type A
      *B Type B
      *1 No. 1 Valve Rocker Arm Sub-assembly
      *2 Valve Lash Adjuster Assembly
      *3 Valve Stem
      *4 Valve Stem Cap

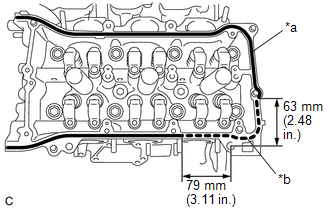

    2. Apply seal packing in a continuous line as shown in the illustration.
      GTY453918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Continuous Line Area (Seal Packing)
      *b Dashed line area (Seal Packing)

      Seal Packing

      Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

      SEAL PACKING APPLICATION CHART

      Area Seal Packing Diameter
      Continuous Line Area 2.7 to 4.5 mm (0.107 to 0.177 in.)
      Dashed Line Area 3.5 to 4.5 mm (0.138 to 0.177 in.)
      NOTE:
      • Remove any oil from the contact surface.
      • Install the camshaft housing sub-assembly LH and tighten the bolts within 3 minutes.
      • Do not start the engine for at least 2 hours after installation.

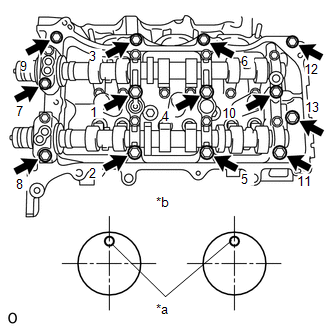

    3. Install the camshaft housing sub-assembly LH and tighten the 13 bolts in the order shown in the illustration.
      Fig 2: Tightening Sequence Of Camshaft Housing Sub-Assembly LH
      GTY428837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Knock Pin
      *b Front View

      Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)

      NOTE:
      • When installing the camshaft housing sub-assembly LH, correctly position the camshafts as shown in the illustration. Failure to do so may result in damage due to contact between the pistons and valves. If a camshaft is rotated, valve contact with a piston at TDC may occur.
      • If any of the bolts are loosened during installation, remove the camshaft housing sub-assembly LH, clean the installation surfaces, and reapply seal packing.
      • If the camshaft housing sub-assembly LH is removed because any of the bolts are loosened during installation, make sure that the previously applied seal packing does not enter any oil passages.

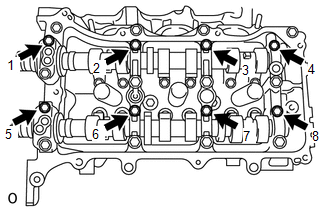

    4. Tighten the 8 bolts in the order shown in the illustration.
      Fig 3: Tightening Sequence Of Camshaft Housing Sub-Assembly LH
      GTY439251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

  5. INSTALL CAMSHAFT
    1. Apply a light coat of engine oil to the camshaft journals and camshaft housing sub-assembly RH.
    2. Install the camshaft to the camshaft housing sub-assembly RH.

      HINT:

      Perform "Inspection After Repair" after replacing the camshaft.

      Refer to INITIALIZATION [12/2013 - 11/2016]

  6. INSTALL NO. 2 CAMSHAFT
    1. Apply a light coat of engine oil to the No. 2 camshaft journals and camshaft housing sub-assembly RH.
    2. Install the No. 2 camshaft to the camshaft housing sub-assembly RH.

      HINT:

      Perform "Inspection After Repair" after replacing the No. 2 camshaft.

      Refer to INITIALIZATION [12/2013 - 11/2016]

  7. INSTALL CAMSHAFT BEARING CAP (for Bank 1)
    1. Apply engine oil to the camshaft bearing caps.

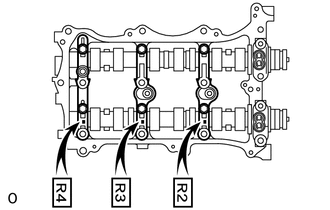

    2. Confirm the marks and numbers on the camshaft bearing caps and place them in their proper positions and directions.
      GTY142355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

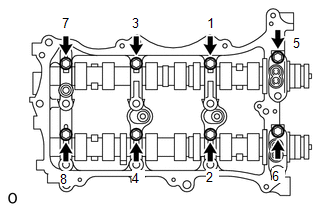

    3. Temporarily tighten the 8 bolts in the order shown in the illustration.
      Fig 4: Tightening Sequence Of Camshaft Bearing Cap Bolts (For Bank 1)
      GTY436752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  8. INSTALL CAMSHAFT HOUSING SUB-ASSEMBLY RH
    GTY479604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *A Type A
    *B Type B
    *1 No. 1 Valve Rocker Arm Sub-assembly
    *2 Valve Spring Retainer
    *3 Inner Compression Spring
    *a Valve Spring Retainer Diameter
    *b No. 1 Valve Rocker Arm Sub-assembly Roller Width

    HINT:

    Type A and Type B can be distinguished by the shape of the compression spring.

    Type No. 1 Valve Rocker Arm Sub-assembly Roller Width Valve Spring Retainer Diameter Inner Compression Spring Shape
    A 10.7 mm (0.421 in.) 23.4 mm (0.921 in.) Straight
    B 8.0 mm (0.315 in.) 18.9 mm (0.744 in.) Taper
    1. Make sure that the No. 1 valve rocker arm sub-assemblies are installed as shown in the illustration.
      GTY472310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Type A
      *B Type B
      *1 No. 1 Valve Rocker Arm Sub-assembly
      *2 Valve Lash Adjuster Assembly
      *3 Valve Stem
      *4 Valve Stem Cap

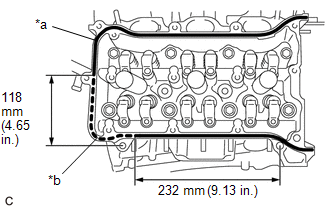

    2. Apply seal packing in a continuous line as shown in the illustration.
      GTY442728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Continuous Line Area (Seal Packing)
      *b Dashed line area (Seal Packing)

      Seal Packing

      Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

      SEAL PACKING APPLICATION CHART

      Area Seal Packing Diameter
      Continuous Line Area 2.7 to 4.5 mm (0.107 to 0.177 in.)
      Dashed Line Area 3.5 to 4.5 mm (0.138 to 0.177 in.)
      NOTE:
      • Remove any oil from the contact surface.
      • Install the camshaft housing sub-assembly RH and tighten the bolts within 3 minutes.
      • Do not start the engine for at least 2 hours after installation.

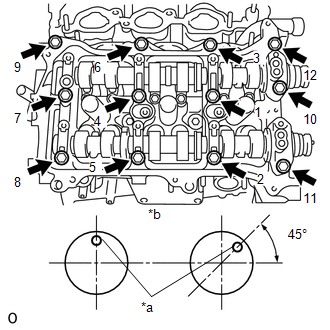

    3. Install the camshaft housing sub-assembly RH and tighten the 12 bolts in the order shown in the illustration.
      Fig 5: Tightening Sequence Of Camshaft Housing Sub-Assembly RH
      GTY431317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Knock Pin
      *b Front View

      Torque: 28 N*m (286 kgf*cm, 21 ft.*lbf)

      NOTE:
      • When installing the camshaft housing sub-assembly RH, correctly position the camshafts as shown in the illustration.

        Failure to do so may result in damage due to contact between the pistons and valves. If a camshaft is rotated, valve contact with a piston at TDC may occur.

      • If any of the bolts are loosened during installation, remove the camshaft housing sub-assembly RH, clean the installation surfaces, and reapply seal packing.
      • If the camshaft housing sub-assembly RH is removed because any of the bolts are loosened during installation, make sure that the previously applied seal packing does not enter any oil passages.
    4. Tighten the 8 bolts in the order shown in the illustration.

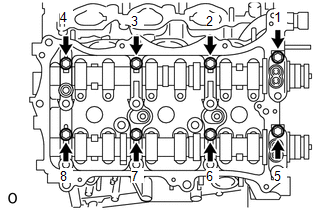

      Fig 6: Tightening Sequence Of Camshaft Housing Sub-Assembly RH
      GTY450393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 16 N*m (163 kgf*cm, 12 ft.*lbf)

  9. INSTALL NO. 3 CHAIN TENSIONER ASSEMBLY

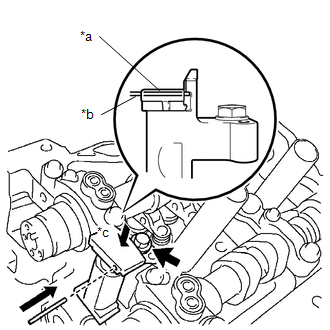

    1. Install the No. 3 chain tensioner assembly with the bolt.
      GTY448244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Plunger
      *b Pin
      *c Push

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    2. While pushing down the No. 3 chain tensioner assembly, insert a 1.0 mm (0.0394 in.) diameter pin into the hole to secure it.
  10. INSTALL CAMSHAFT TIMING GEAR ASSEMBLY, CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY AND NO. 2 CHAIN SUB-ASSEMBLY (for Bank 2)

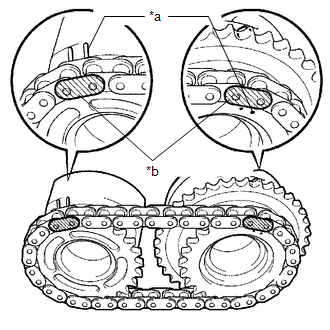

    1. Align the mark plates (yellow) with the timing marks of the camshaft timing gear assembly as shown in the illustration.
      GTY428479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Timing Mark
      *b Mark Plate
    2. Apply a light coat of engine oil to the bolt threads and bolt-seating surface.
    3. Align the knock pin of the No. 3 camshaft and No. 4 camshaft with the pin hole of the camshaft timing gear assembly and camshaft timing exhaust gear assembly. Install the camshaft timing gear assembly and camshaft timing exhaust gear assembly with the No. 2 chain sub-assembly installed.
    4. Using SST to hold the hexagonal portion of each camshaft, tighten the bolts of the camshaft timing gear assembly and the camshaft timing exhaust gear assembly.
      • SST: 09922-10010

      Torque: 100 N*m (1020 kgf*cm, 74 ft.*lbf)

    5. Remove the pin from the No. 3 chain tensioner assembly.

      HINT:

      Perform "Inspection After Repair" after replacing the camshaft timing gear assembly or camshaft timing exhaust gear assembly.

      Refer to INITIALIZATION [12/2013 - 11/2016]

  11. INSTALL NO. 2 CHAIN TENSIONER ASSEMBLY

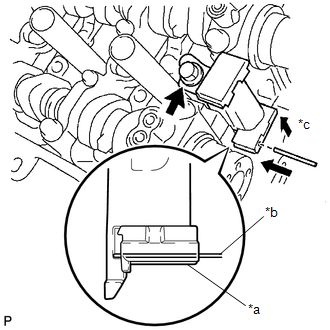

    1. Install the No. 2 chain tensioner assembly with the bolt.
      GTY445187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Plunger
      *b Pin
      *c Push

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

    2. While pushing up the No. 2 chain tensioner assembly, insert a 1.0 mm (0.0394 in.) diameter pin into the hole to secure it.
  12. INSTALL CAMSHAFT TIMING GEAR ASSEMBLY, CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY AND NO. 2 CHAIN SUB-ASSEMBLY (for Bank 1)

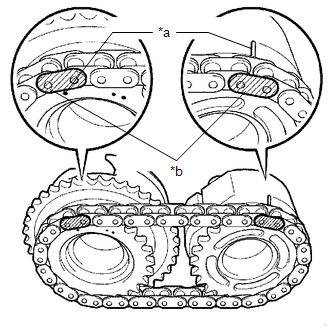

    1. Align the mark plates (yellow) with the timing marks of the camshaft timing gear assembly as shown in the illustration.
      GTY425645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Timing Mark
      *b Mark Plate
    2. Apply a light coat of engine oil to the bolt threads and bolt-seating surface.
    3. Align the knock pin of the camshaft and No. 2 camshaft with the pin hole of the camshaft timing gear assembly and camshaft timing exhaust gear assembly. Install the camshaft timing gear assembly and camshaft timing exhaust gear assembly with the No. 2 chain sub-assembly installed.
    4. Using SST to hold the hexagonal portion of each camshaft, tighten the bolts of the camshaft timing gear assembly and the camshaft timing exhaust gear assembly.
      • SST: 09922-10010

      Torque: 100 N*m (1020 kgf*cm, 74 ft.*lbf)

    5. Remove the pin from the No. 2 chain tensioner assembly.

      HINT:

      Perform "Inspection After Repair" after replacing the camshaft timing gear assembly or camshaft timing exhaust gear assembly.

      Refer to INITIALIZATION [12/2013 - 11/2016]

  13. INSTALL IDLE SPROCKET ASSEMBLY

    Refer to PROCEDURE - Step 26 , or refer to PROCEDURE - Step 26

  14. INSTALL CHAIN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 27 , or refer to PROCEDURE - Step 27

  15. INSTALL CHAIN TENSIONER SLIPPER

    Refer to PROCEDURE - Step 28 , or refer to PROCEDURE - Step 28

  16. INSTALL NO. 1 CHAIN TENSIONER ASSEMBLY

    Refer to PROCEDURE - Step 29 , or refer to PROCEDURE - Step 29

  17. INSPECT VALVE TIMING

    Refer to PROCEDURE - Step 30 , or refer to PROCEDURE - Step 30

  18. INSTALL TIMING CHAIN CASE OIL SEAL

    Refer to PROCEDURE - Step 1 , or refer to PROCEDURE - Step 1

  19. INSTALL TIMING CHAIN COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 2 , or refer to PROCEDURE - Step 2

  20. INSTALL OIL PAN SUB-ASSEMBLY
    1. Install 2 new O-rings.

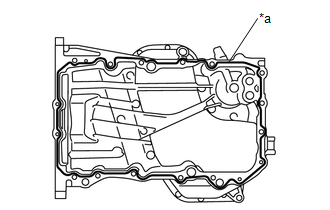

    2. Apply seal packing in a continuous line as shown in the illustration.
      GTY433683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Seal Packing

      Seal Packing

      Toyota Genuine Seal Packing Black, Three Bond 1207B or equivalent

      Seal Packing Diameter

      2.5 to 3.5 mm (0.0985 to 0.1377 in.)

      NOTE:
      • Remove any oil from the contact surfaces.
      • Install the oil pan sub-assembly within 3 minutes of applying seal packing.
      • Do not start the engine for at least 2 hours after installation.

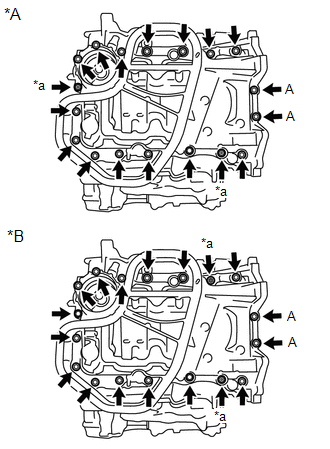

    3. Install the oil pan sub-assembly with the 16 bolts and 2 nuts.

      Bolt (A)

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      Except Bolt (A)

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      GTY592003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Type A
      *B Type B
      *a Nut
  21. INSTALL OIL STRAINER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 38 , or refer to PROCEDURE - Step 38

  22. INSTALL NO. 2 OIL PAN SUB-ASSEMBLY

    Refer to PROCEDURE - Step 39 , or refer to PROCEDURE - Step 39

  23. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 41 , or refer to PROCEDURE - Step 41

  24. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 42 , or refer to PROCEDURE - Step 42

  25. INSTALL WATER INLET HOUSING

    Refer to PROCEDURE - Step 34 , or refer to PROCEDURE - Step 34

  26. INSTALL NO. 1 FRONT ENGINE MOUNTING BRACKET LH

    Refer to PROCEDURE - Step 35 , or refer to PROCEDURE - Step 35

  27. INSTALL NO. 1 OIL COOLER BRACKET (w/ Oil Cooler)

    Refer to PROCEDURE - Step 45 , or refer to PROCEDURE - Step 45

  28. INSTALL OIL COOLER ASSEMBLY (w/ Oil Cooler)

    Refer to PROCEDURE - Step 1

  29. INSTALL CRANKSHAFT PULLEY

    See step  2 , or see step  2

  30. INSTALL NO. 1 OIL PIPE

    Refer to PROCEDURE - Step 51 , or refer to PROCEDURE - Step 51

  31. INSTALL OIL PIPE

    Refer to PROCEDURE - Step 52 , or refer to PROCEDURE - Step 52

  32. INSTALL CRANKSHAFT POSITION SENSOR

    Refer to PROCEDURE - Step 1

  33. INSTALL NO. 1 VACUUM SWITCHING VALVE

    Refer to PROCEDURE - Step 5

  34. INSTALL WATER PUMP PULLEY

    Refer to PROCEDURE - Step 7

  35. INSTALL NO. 2 IDLER PULLEY SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  36. INSTALL NO. 2 TIMING GEAR COVER

    Refer to PROCEDURE - Step 8

  37. INSTALL ENGINE OIL LEVEL DIPSTICK GUIDE

    Refer to PROCEDURE - Step 44 , or refer to PROCEDURE - Step 44

  38. INSTALL V-RIBBED BELT TENSIONER ASSEMBLY

    Refer to PROCEDURE - Step 9

  39. INSTALL GENERATOR ASSEMBLY

    Refer to PROCEDURE - Step 1

  40. INSTALL ENGINE MOUNTING BRACKET RH

    Refer to PROCEDURE - Step 11

  41. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst)

    Refer to PROCEDURE - Step 3

  42. INSTALL NO. 2 EXHAUST MANIFOLD HEAT INSULATOR

    Refer to PROCEDURE - Step 5

  43. INSTALL NO. 2 MANIFOLD STAY

    Refer to PROCEDURE - Step 4

  44. INSTALL NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE

    Refer to PROCEDURE - Step 16

  45. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst)

    Refer to PROCEDURE - Step 11

  46. INSTALL INTAKE MANIFOLD

    Refer to INSTALLATION [12/2013 - 11/2016]

  47. INSTALL IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  48. INSTALL ENGINE HANGERS

    See step  62

  49. REMOVE ENGINE FROM ENGINE STAND

    Refer to INSTALLATION [12/2013 - 11/2016]

scientia non olet · About LEMON Manuals
