Installation [12/2013 - ]: Procedure
- INSTALL LOWER CONTROL ARM PIN
- TEMPORARILY INSTALL REAR AXLE CARRIER SUB-ASSEMBLY
- Secure the rear axle carrier sub-assembly in a vise using aluminum plates.NOTE:
Do not overtighten the vise.

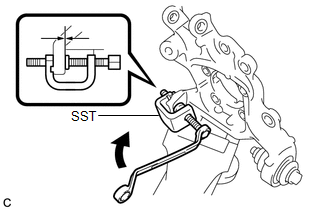

- Using a brass bar and a hammer, push out the bushing until it is positioned as shown in the illustration.
HINT:
Pushing out the bushing makes it easier to install the rear axle carrier sub-assembly.

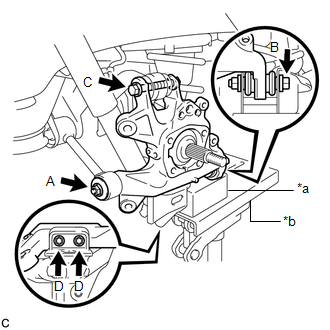

- Temporarily install the rear axle carrier sub-assembly to the rear No. 1 suspension arm assembly with the spacer and nut (A).NOTE:
Fully tighten the nut (A) after stabilizing the suspension.
*a Wooden Block *b Jack - Install the rear axle carrier sub-assembly to the rear No. 2 suspension arm assembly with the bolt (B) and nut.
Torque: 100 N*m (1020 kgf*cm, 74 ft.*lbf)
NOTE:- Insert the bolt with the threaded end facing the front of the vehicle.
- Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
- Install the rear axle carrier sub-assembly to the rear upper control arm assembly with the bolt (C) and nut.
Torque: 145 N*m (1479 kgf*cm, 107 ft.*lbf)
NOTE:- Insert the bolt with the threaded end facing the rear of the vehicle.
- Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
- Install the rear axle carrier sub-assembly to the rear lower shock absorber bracket sub-assembly with the 2 bolts (D).
Torque: 100 N*m (1020 kgf*cm, 74 ft.*lbf)
- Slowly lower the rear No. 2 suspension arm assembly.
- Secure the rear axle carrier sub-assembly in a vise using aluminum plates.
- TEMPORARILY INSTALL PARKING BRAKE ASSEMBLY
- INSTALL REAR TRAILING ARM ASSEMBLY
Refer to PROCEDURE - Step 1
- INSTALL PARKING BRAKE ASSEMBLY
- INSTALL REAR AXLE HUB AND BEARING ASSEMBLY
See step 2
- INSTALL REAR SPEED SENSOR

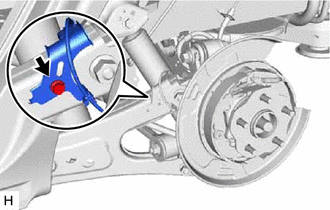

- Install the rear speed sensor to the rear trailing arm assembly with the bolt.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
NOTE:Do not twist the rear speed sensor when installing it.

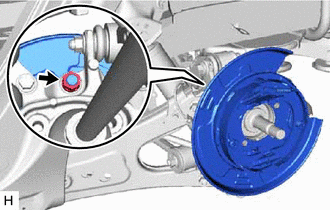

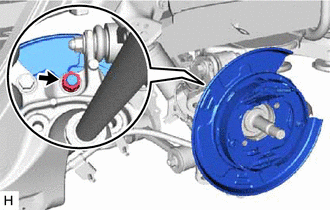

- Install the rear speed sensor to the rear axle carrier sub-assembly with the bolt.
Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
NOTE:Do not twist the rear speed sensor when installing it.
- Install the rear speed sensor to the rear trailing arm assembly with the bolt.
- INSTALL REAR DISC
Refer to PROCEDURE - Step 1
- INSTALL PARKING BRAKE SHOE ADJUSTING HOLE PLUG
Refer to PROCEDURE - Step 2
- INSTALL REAR DISC BRAKE CALIPER ASSEMBLY
- Install the rear disc brake caliper assembly to the rear axle carrier sub-assembly with the 2 bolts.
Torque: 95 N*m (969 kgf*cm, 70 ft.*lbf)

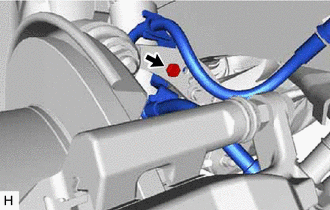

- Install the rear flexible hose to the rear upper control arm assembly with the bolt.
Torque: 18.8 N*m (192 kgf*cm, 14 ft.*lbf)
NOTE:- Do not twist the rear flexible hose when installing it.
- Do not damage the rear flexible hose when installing it.
- If the rear flexible hose is damaged, replace it with a new one.

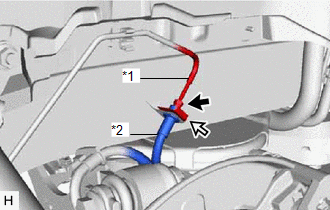

- Install the rear flexible hose with a new clip.
*1 Rear Brake Tube *2 Rear Flexible Hose Clip NOTE:Install the clip as far as it will go.
- Using a union nut wrench, connect the rear flexible hose to the rear brake tube while holding the rear flexible hose with a wrench.
Torque: 15.2 N*m (155 kgf*cm, 11 ft.*lbf)
NOTE:- Do not kink or damage the brake line.
- Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.
- Use the formula to calculate special torque values for situations where the union nut wrench is combined with a torque wrench.
Refer to PRECAUTION [12/2013 - 11/2016] , or refer to PRECAUTION [11/2016 - ]
- Install the rear disc brake caliper assembly to the rear axle carrier sub-assembly with the 2 bolts.
- INSTALL REAR AXLE SHAFT NUT
- Clean the threaded parts on the rear drive shaft assembly and a new rear axle shaft nut using non-residue solvent.NOTE:
- Be sure to perform this work even when using a new rear drive shaft assembly.
- Keep the threaded parts free of oil and foreign matter.
- Using a 30 mm socket wrench, while applying the parking brakes, temporarily install the rear axle shaft nut.
Torque: 294 N*m (2998 kgf*cm, 217 ft.*lbf)
- Using a chisel and hammer, stake the rear axle shaft nut.
- Clean the threaded parts on the rear drive shaft assembly and a new rear axle shaft nut using non-residue solvent.
- BLEED BRAKE LINE
Refer to BLEEDING [12/2013 - ]
- STABILIZE SUSPENSION
Refer to PROCEDURE - Step 2
- INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY
- INSTALL REAR SUSPENSION ARM COVER
Refer to PROCEDURE - Step 6 , or refer to PROCEDURE - Step 6
- ADJUST PARKING BRAKE
Refer to ADJUSTMENT [12/2013 - ]

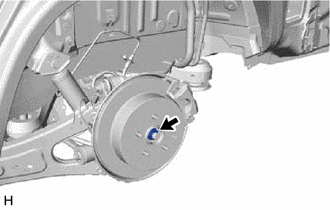

- INSTALL REAR WHEEL
Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
- INSPECT AND ADJUST REAR WHEEL ALIGNMENT
Refer to ADJUSTMENT [12/2013 - 11/2016] , or refer to ADJUSTMENT [11/2016 - ]
- CHECK FOR SPEED SENSOR SIGNAL
Refer to TEST MODE PROCEDURE [12/2013 - 11/2016] , or refer to TEST MODE PROCEDURE [11/2016 - ]
